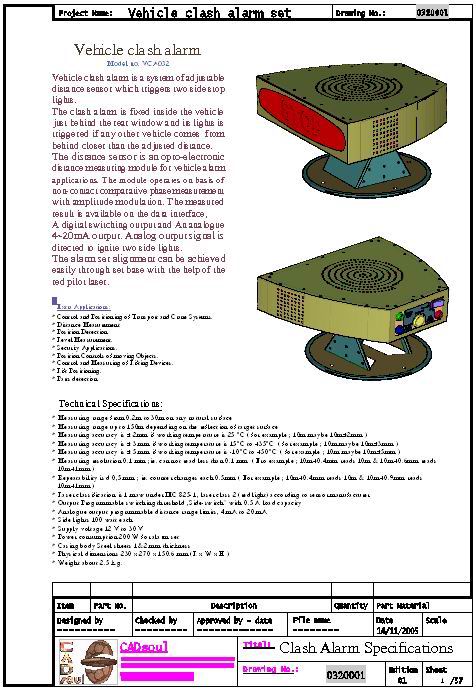

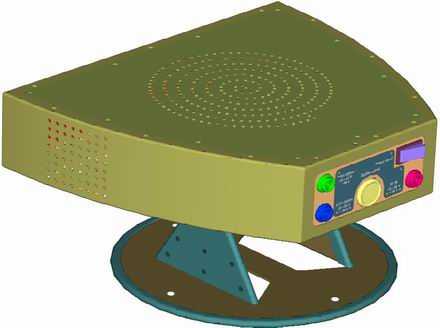

Vehicle clash alarm
Model no. VCA032

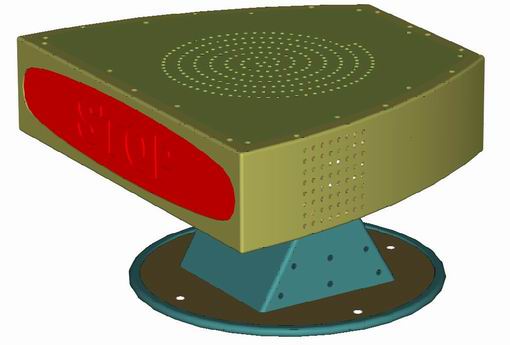

Vehicle clash alarm
is a system of adjustable distance sensor which triggers two side
stop lights.
The clash alarm is
fixed inside the vehicle just behind the rear window and its lights
is triggered if any other vehicle comes from behind closer than the
adjusted distance.
The distance sensor
is an opto-electronic distance measuring module for vehicle alarm
applications. The module operates on basis of non-contact
comparative phase measurement with amplitude modulation. The
measured result is available on the data interface. A digital
switching output and An analogue 4...20mA output. Analog output

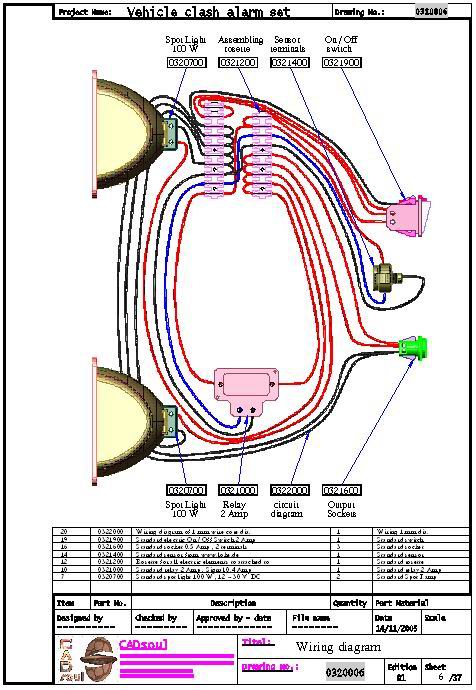

signal is directed to ignite two side lights.

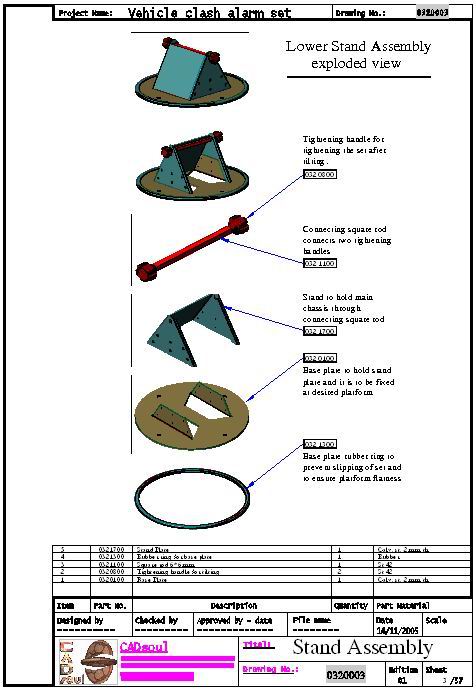

The alarm set
alignment can be easily achieved through set base with the help of
the red pilot laser.

Extra
Applications:
Control and Positioning of Transport and Crane Systems.
|
 |
|
|
|
|
|
|
|
|
Position Controls of moving Objects.
|
Control and Measuring of Lifting Devices. |
|
|
|
|
Technical Datas
|
Measuring range: |
0.2 to 30 m on any natural
surface, up to 150m (depending on target surface) |
|
Measuring accuracy: |
± 2 mm , ± 3 mm at (+15°C to
+35°C), ± 5 mm at (-10°C to +50°C) |
|
Measuring resolution: |
0.1 mm |
|
Repeatability: |
≤ 0,5 mm |
|
Measuring rate: |
10Hz on white surfaces ,Typically
5 Hz (up to 10 Hz) on all surfaces; |
|
Laser divergence: |
0.6 mrad |
|
Laser classification: |
1 mW under IEC 825-1, laser class
2 (red light) |
|
Switching output: |
Programmable switching threshold
,Side-switch" with 0.5 A load capacity. |
|
Analogue output: |
programmable distance range
limits, 4 mA to 20 mA |
|
Side lights |
100 watt each |
|
Supply voltage: |
10 V to 30 V |
|
Power consumption |
200 W for alarm set |
|

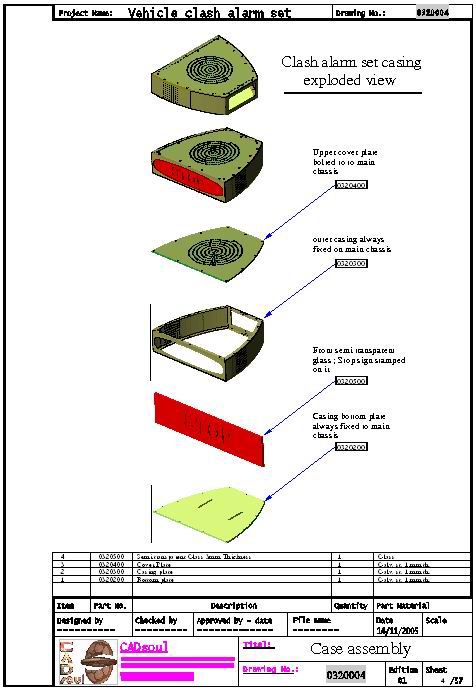

Casing body |
Steel sheets 1 mm thickness |
|

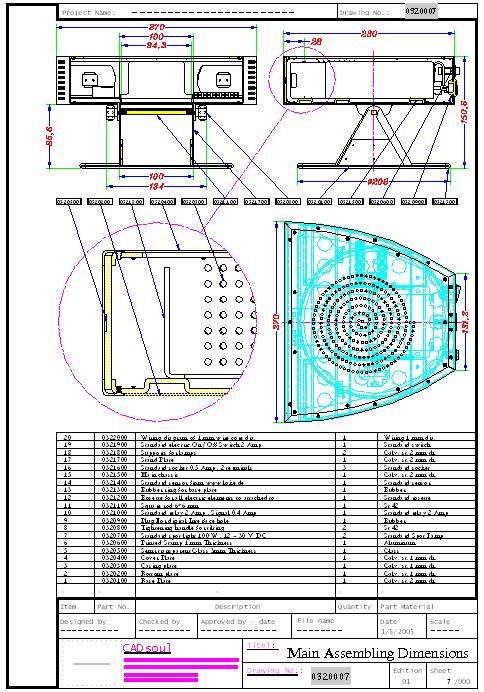

Phys. dimensions: |
380 x 150 x 85 mm (L x W x H) without
base |
|
Weight: |
About 2.5 k.g. |
|
