Wire
Drawing Machine
Model
no.
WD074

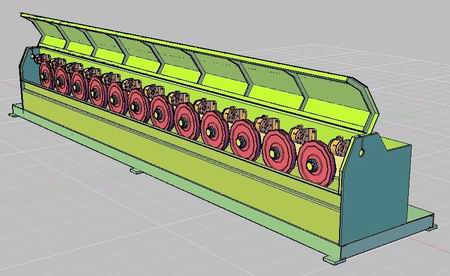

Wire drawing machine is
stepped cone type suitable for drawing non-ferrous metals like
Aluminium and Copper using a numbers of dies in tandem. The machines
have horizontally mounted stepped capstans which is hardened and
ground finished. The drive to individual capstan shaft is provided
through Helical Gears. The gear train is housed in steel fabricated solid
body and is oil immersed for smooth running. The die holders are
adjustable and are provided between each capstan unit. Separate
pipeline is provided over each die for forced lubrication and
cleaning of dies.
The wire
drawing machines are used to draw high, medium and low carbon steel,
as well as copper, aluminum, and alloy. The wire drawing machines
are often applied to draw wires in nail making factories, wire steel
factories, and metal mesh factories, etc. the wire drawing machine
is consisted of main reduction box, die casting, wheel frame, wire
brace and electrical control system
Compared
with other Dry type wire drawing machine, our Dry type wire drawing
machine enjoys many advantages including: more reasonable structure,
more compact appearance, smoother operating, higher efficiency and
is easy to operate and maintain.
Technical Specifications:
|
No. of
Drafts |
10 |
|
Drawing
Capstan Dia |
400
mm |
|
Inlet
Aluminium wire |
8 mm |
|
Inlet
Copper wire
|
8 mm |
|
Finished
Wire |
1.00 to 4.00
mm |
|
Drawing
Final Speed |
100 m/min |
|
HP
Required |
25 hp |
|
Reduction
Area |
20 to
30% |
|
Type of
Machine |
Slip Type |
|
No. of Dies |
10
Dies |
|
Average partial
compressibility |
29
% |
|
Capstan speed |
70~120
r.p.m |
|
Wire drawing line speed
|
1.8
m/s |
|
Dimensions |
4400 x 1000 x 600
mm |
|
Weight |
1400
kg |
|
