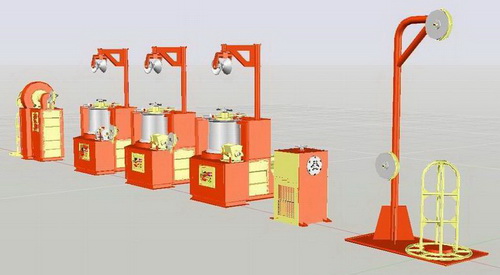

Wire drawing line

Model DL070







Coil Stand
Model no. CS071
Drawing no. 710000

Wire holding stand
Wire reel inner diameter 30 mm
Wire reel output diameter 70 cm
Wire reel hight 100 cm
Accept reels up to 200 cm hight
Sensors pulley is provided
Limit switch works at empty reel
Incoder works at over tension



Wire Descaler
Model no. WD072
Drawing no. 720000

Wire straightning machine
Wire working length 36 cm
Working stations 5
Number of rolls 15
Roll diameter 8 cm
Handle stroke 20 mm
Lubricant basin is provided



Wire Drawing M/C
Model no. WD073
Drawing no. 730000

Steel wire drawing block
Sensors pulley - NO
Die holder - Yes
Wire notcher - NO
Drawing ratio 27%
Input wire diameter 5.5 mm
Output wire diameter 4.7 mm
Input wire speed 121.4 m/min
Output wire speed 166.3 m/min
Motor speed 1058.5 rpm
Drum speed 105.8 rpm
Calculated required power 17.5 hp
Actual used motor power 20 hp



Wire Drawing M/C
Model no. WD073
Drawing no. 730000

Steel wire drawing block
Sensors pulley - YES
Die holder - YES
Wire notcher - NO
Drawing ratio 27%
Input wire diameter 4.7 mm
Output wire diameter 4.0 mm
Input wire speed 166.3 m/min
Output wire speed 227.8 m/min
Motor speed 1450 rpm
Drum speed 145 rpm
Calculated required power 12 hp
Actual used motor power 15 hp
Limit switch for over tension
Incoder for wire speed



Wire Drawing M/C
Model no. WD073
Drawing no. 730000

Steel wire drawing block
Sensors pulley - YES
Die holder - NO
Wire notcher - YES
Drawing ratio 00%
Input wire diameter 4.0 mm
Output wire diameter 4.0 mm
Output wire speed 227.8 m/min
Output wire speed 227.8 m/min
Motor speed 1450 rpm
Drum speed 145 rpm
Calculated required power 4 hp
Actual used motor power 8 hp
Limit swith for over tension
Incoder for wire speed



Static coiler
Model no. SC075
Drawing no. 750000

Wire static coiler
Coiling drum diameter 40 cm
Input wire speed 227.8 m/min
Coiling speed 181.3 rpm
Motor speed 1269 rpm
Gear box reduction ratio 1:7
Sensors pulley is provided
Limit switch for over tension
Incoder for wire lenth
