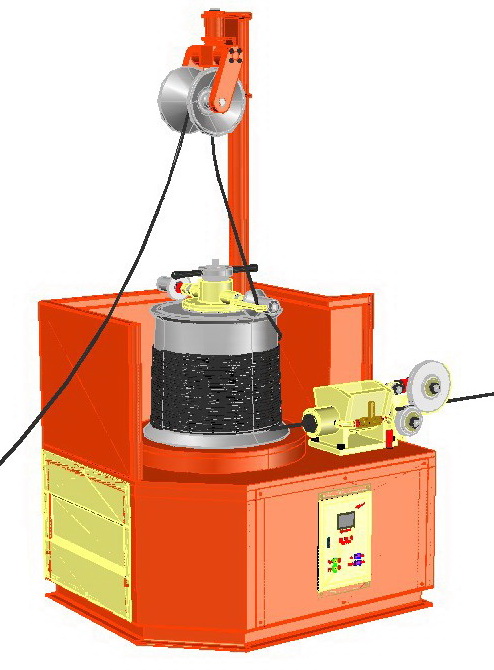

Dry Wire Drawing

Model WD073







Wire Drawing M/C
Model no. WD073
Drawing no. 730000

Steel wire drawing block
Sensors pulley - NO
Die holder - Yes
Wire notcher - NO
Drawing ratio 27%
Input wire diameter 5.5 mm
Output wire diameter 4.7 mm
Input wire speed 121.4 m/min
Output wire speed 166.3 m/min
Motor speed 1058.5 rpm
Drum speed 105.8 rpm
Calculated required power 17.5 hp
Actual used motor power 20 hp



Wire Drawing M/C
Model no. WD073
Drawing no. 730000

Steel wire drawing block
Sensors pulley - YES
Die holder - YES
Wire notcher - NO
Drawing ratio 27%
Input wire diameter 4.7 mm
Output wire diameter 4.0 mm
Input wire speed 166.3 m/min
Output wire speed 227.8 m/min
Motor speed 1450 rpm
Drum speed 145 rpm
Calculated required power 12 hp
Actual used motor power 15 hp
Limit switch for over tension
Incoder for wire speed



Wire Drawing M/C
Model no. WD073
Drawing no. 730000

Steel wire drawing block
Sensors pulley - YES
Die holder - NO
Wire notcher - YES
Drawing ratio 00%
Input wire diameter 4.0 mm
Output wire diameter 4.0 mm
Output wire speed 227.8 m/min
Output wire speed 227.8 m/min
Motor speed 1450 rpm
Drum speed 145 rpm
Calculated required power 4 hp
Actual used motor power 8 hp
Limit swith for over tension
Incoder for wire speed











Manufacture yourself



Exact Qualiy

Lower Price



Now

You can buy

drawings only and manufacture yourself



You can buy machine drawings only from CADshop and manufacture at any workshop you know with required quality and lower price
