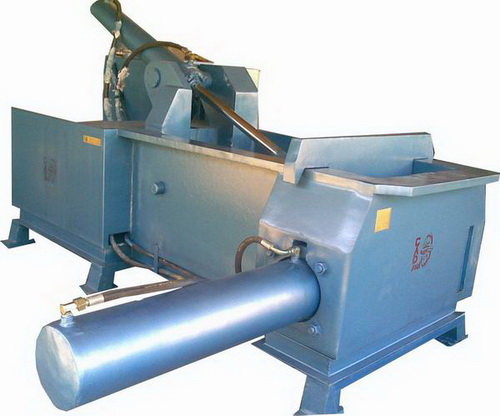

Scrap Baler

Model SB061





Technical Specifications :

Baling chamber

65cm x 75cm x120cm (H)x(W)x(L)

Bale Size

35cm X 35cm X 30 - 40 cm  (HXLXW)

Electric Motor

40 H.P. 3Ø, 1440 (R.P.M.)

Body

Steel fabrication

Oil drive

Gear pump

Force on upper cylinder

36 tons

Force on Main cylinder

100 tons

Force on side cylinder

64 tons

Force on door cylinders

8 TONS (Each)

Working pressure

3000 PSI

Weight of Bale (Approx)

100 Kgs

Cycle time (Approx)

90 Seconds

Weight of Machine (Approx)

7 tons

Oil tank capacity

500 ltrs.
