Tire recycling line

1500 kg/hr

Model No. TR088



Two production line

General features :

·    Floor space required  15m * 40m and 6m height

·    Manpower required 4 per shift

·    Enclosed water system included

·    Air cleaning unit included

·    Electrical control unit included

·    Freight and installation is optional

·    Spare parts and after sales services is provided

·    One year warranty





Line configuration in sequence



Item

Model

Description

Preview

Sample





1

TD089

Tire debeader  for120 cm tires





2

TC090

Tire cutter 36 ton





3

BC017

Belt conveyor 4 m length

 ( 6 belts in whole line )







4

RS091

Whole Tire Shredder 1500 kg/h Capacity





5

MS095

Magnetic separator 1500 kg/hr





6

RG092

Rubber grinder 1500 kg/h





7

MS095

Magnetic separator 1500 kg/hr





8

AG048

Auger Conveyor 2.8 m length ;10" diameter

( 3 Augers in whole line )





9

FS093

Fiber Separator 1500 kg/hr





10

SF094

Screening and filing unit 1500 kg/hr capacity





11

CDC026

Cyclone Dust Collector





12

WPU023

Water cooling and pumping unit





13

C2P088

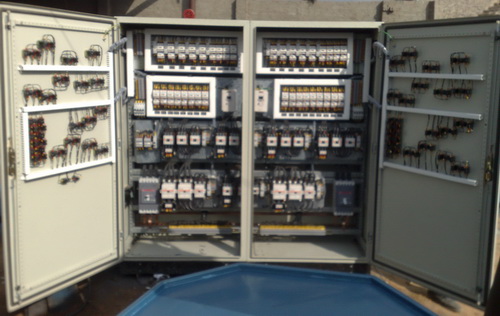

Integrated control panel



Other line configurations according to input capacity :



·    Model T1R088 - Tire recycling line configurations for 300 kg/hr

·    Model T2R088 - Tire recycling line configurations for 750 kg/hr

·    Model T3R088 - Tire recycling line configurations for 1500 kg/hr

·    Model T4R088 - Tire recycling line configurations for 3000 kg/hr



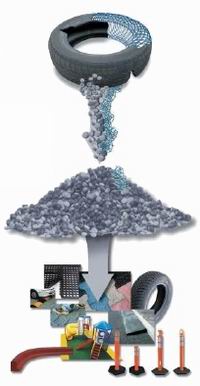

Output analysis of rubber powder for 1500 kg/hr input tires:



Steel

 20% steel

Fibers

5% fibers

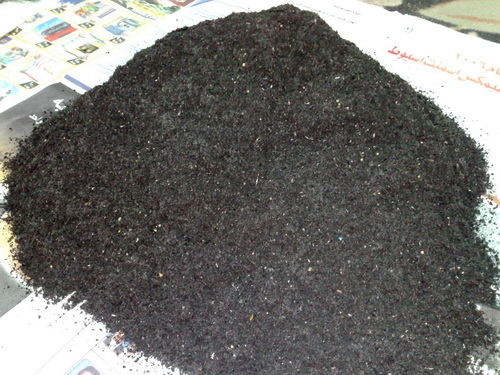

Rubber 0 - 0.5 mm

16% powder 0 - 0.5 mm

Rubber 0.5 - 1 mm

16% powder 0.5 - 1 mm

Rubber 1 - 2  mm

21% powder  1 - 2  mm

Rubber 2 - 3 mm

21% powder   2 - 3 mm

Contamination

Max. 0.5 %

Moisture

Max. 0.5 %

Power Consumption

215 kw

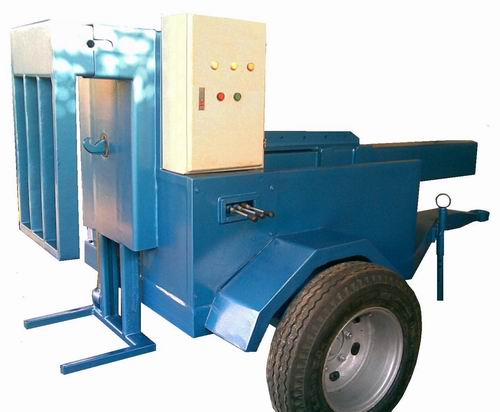

1 - Tire Debeader

Model no. TD089

The Tire Debeader has been specifically designed to remove steel beads from truck tyres. Further destruction of the tire by shredding is a task made considerably easier.

Operator protection is design feature which consider a high priority. The Debeader shows this dedication to safety by providing a fully enclosed cage around the operation of the machine.

Tire Debeader removes the beads from radial truck tires. Operation of the unit makes it a natural for shredding operations. Removal of the bead wire prior to shredding allows for a cleaner end product and provides less wear on the moving parts of the shredder. This not only provides a smooth shredding operation, but also cuts down on expensive maintenance down time.

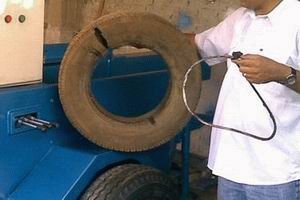

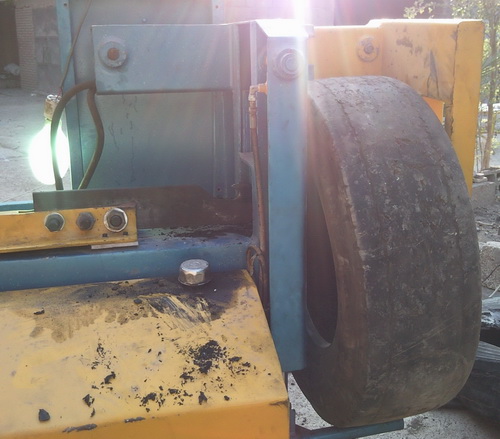

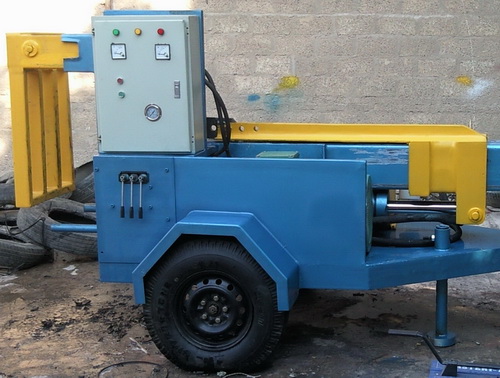

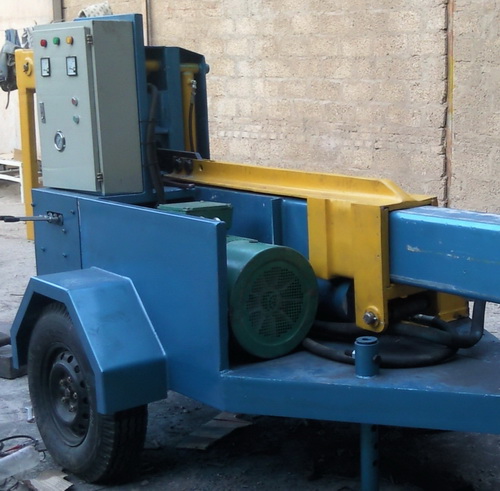

Tire loading

Tire debeaded

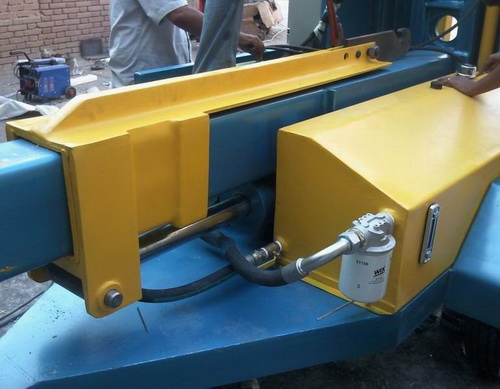

Hard faced & toughened hooked sword, to promote high strength with wear resistance designed to pull tough bead wire without breaking the wires during extraction process.

Control of the debeading sword is via the lever operated control at the near upper left corner of machine. This control is may easily be mounted elsewhere, according to specific needs or convenience.

All electrics are included. A master enclosure with all relays & master switch is attached. All push buttons, all hoses are included.

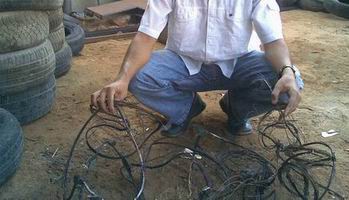

Output steel

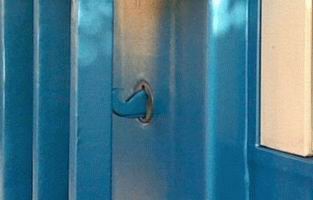

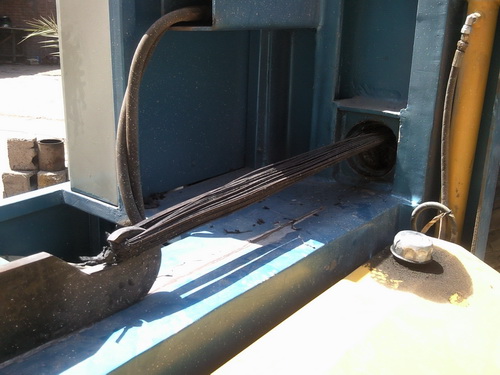

Debeading  hook

Advantages of debeaded tires :

·         Lower processing times for shredding

·         Reduced maintenance expenses

·         Higher rubber output

·         Reduced product size

·         Lower power consumption

General features:

·         Rugged design for trouble-free service

·         Simple-to-operate hand controls

·         Safety cage for tires protects operator

·         Oil pressure and temperature gauges

Technical specifications:

1.      30Kw Electric Motor

2.      20 seconds Full Stroke and return

3.      Specially designed Bead Slot

4.      36 ton Pulling Strength

5.      Hydraulic tire holder

6.      Safety Cage

7.      Electronic on  off Controls

8.      Hydraulic Lever Controls

9.      Stationary and Mobile Applications

10.  Suitable for most truck tires

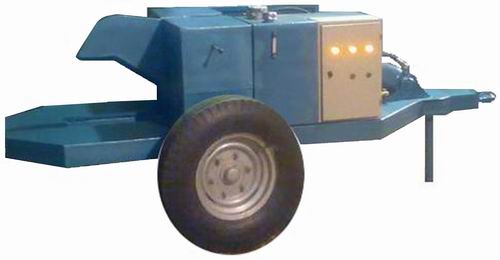

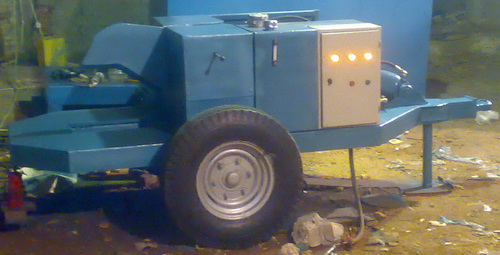

2 - Tire Cutter

Model no. TC090

Tire cutter is designed to cut car, truck and rear tractor tires. Range is up to 120 cm truck tires. The tire cutter  adds flexibility to your total tire cutting system by providing you the opportunities of accepting tires up to 120 cm into your system. The unit also allows your system to cut 60-70 truck tires per hour or 120-150 car tires per hour.

The cutter  is available as a portable or stationary unit and can be powered by electric, diesel or gasoline engines.

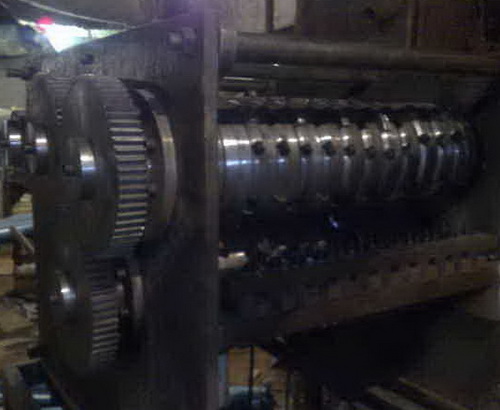

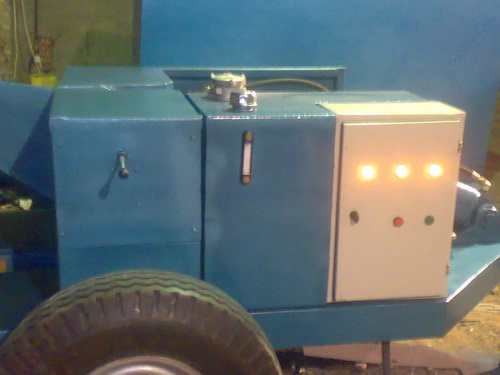

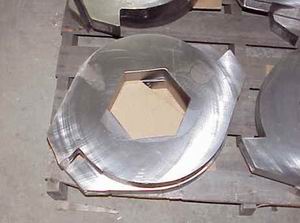

              Cutting blades                                                                       Hydraulic system

 Technical Specifications:

Weight

 1700 kg

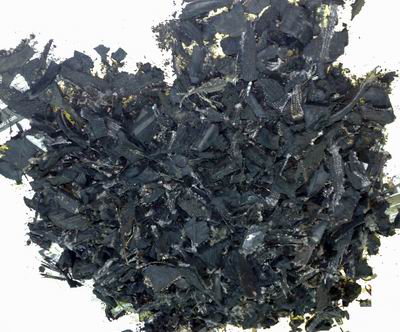

Output sample

Height

150 cm

Width

150 cm

Length

300 cm

Cycle Time

10 Seconds

Hydraulic Pressure

3,000 psi

Electric Motor

30 HP 380 volt

Blade Size

1" x 3" x 25"

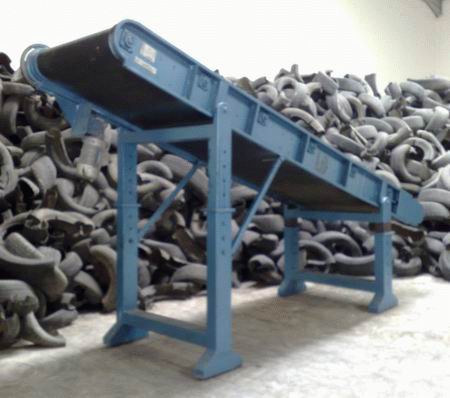

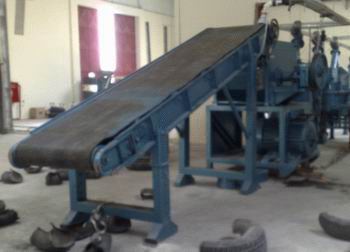

3 - Belt Conveyor

Model no.  BC017

Our belt conveyors are suitable for horizontal and inclining conveying of grain and similar granulated materials in addition to material conveying in production lines where gentle handling is required to minimize damage of materials .

A belt conveyor is self-cleaning and feature economic and gentle conveying. The belt conveyor is available for one-way and reversible conveying is also available .

Technical specifications:

·        Simple design cuts installation and maintenance costs

·        Versatility to handle most materials in production lines or feeding processes

·        Deep trough and 50cm wide belt moves high quantities.

·        Length of conveying is optional

·        All galvanized steel construction - Stainless is optional.

·        Diameter of belt drive is 20 cm with rubber lags to keep belt straight

·        Large 10cm belt idler is crowned and self-cleaning

·        Low speed between 12 to 16 m/min

·        Belt tightener keeps belt at proper tension

·        Belt tilting is adjustable up to 75 degree to act as an elevator

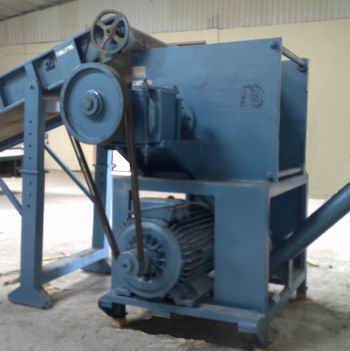

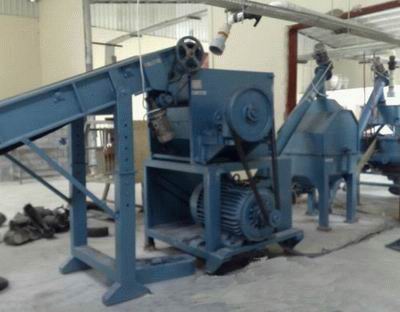

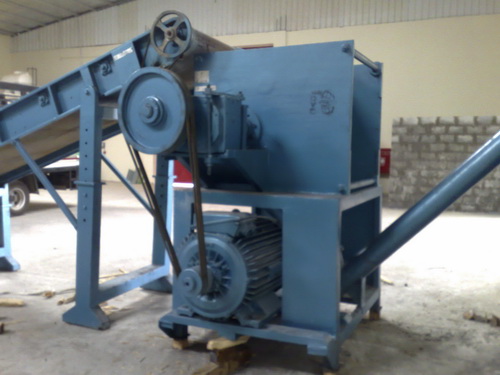

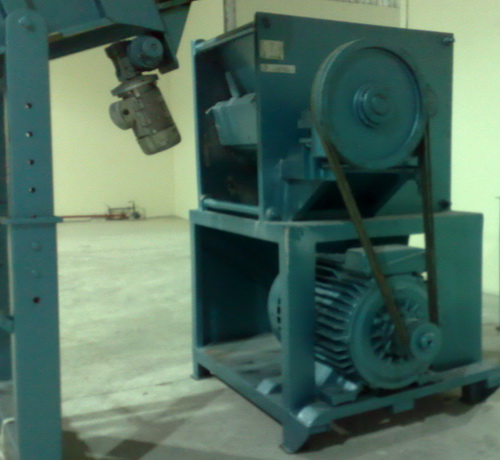

4 - Rubber Shredder

Model no.  RS091

The rubber shredder is specially designed to shred whole truk tyers . The rubber shredder will produce in one pass shredded rubber chips of 16 mm or smaller size.
The rubber shredder is compact, economic and simple to operate. It is designed to work at most efficiency when being used in conjunction with debeader.



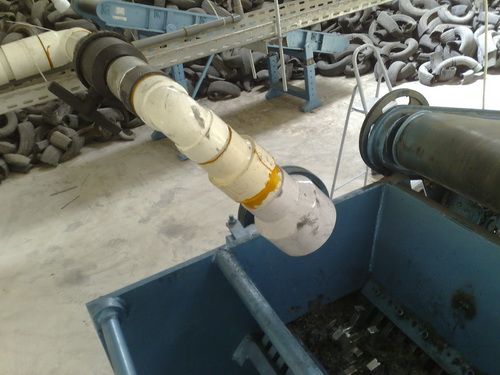

Tire cutting Dust                                                 suction system

Process and unique features:

Tyres are fed to the processing chamber via a chain conveyor and the shredded rubber is discharged via optional 600 mm wide belt conveyor
A low speed high torque cutting mechanism driven through a trouble free, heavy-duty gearbox efficiency and consistently shreds input tires. The gearbox is driven by an electric motor via drive belts. The cutting mechanism consists of single horizontal rotating shaft to which a series of rotating cutting arms are attached. Rotating cutting arms pass within a series of fixed cutting arms located around the inner walls of the processing chamber. Both the rotating and fixed cutter arms are fitted with replaceable, resharpenable blades.

Shredded rubber is discharged from the end of the processing chamber .

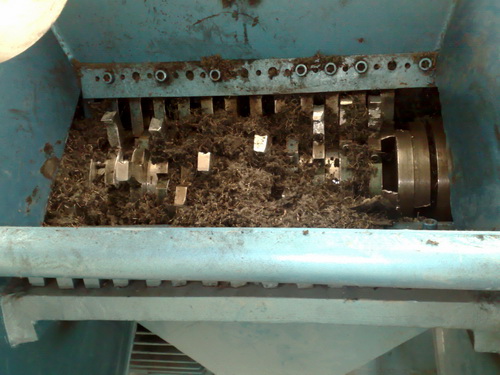

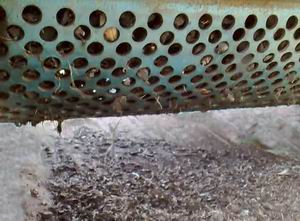

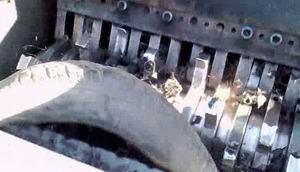

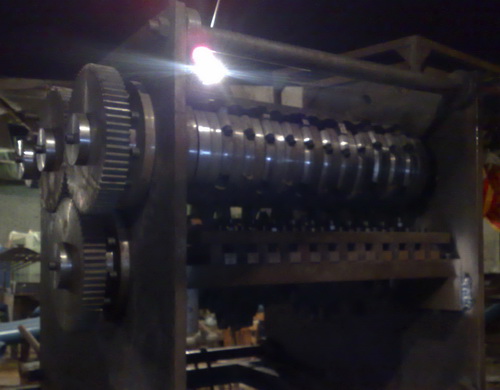

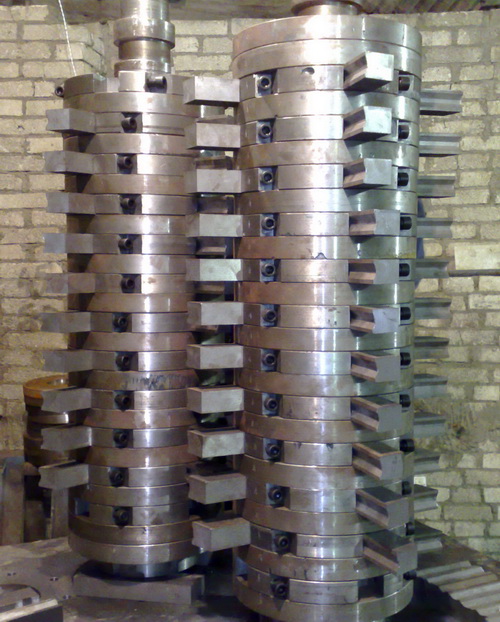

Output screen                                                             Cutting blades

Technical Specification:

·        Power 125 Kw motor , 380 volt.

·        Drive heavy duty gearbox with internal pressure lubrication system

·        Input capacity up to 1500 Kg of truck tires per hour

·        Output rubber shred is less than 16 mm

·        51 blades on 17 rotating arms & 76 blades on 4 fixed arms

·        Blade life approx. 500 hours

·        Various bearings oil lubricated spherical and cylindrical roller bearings

·        Operators 1-2 for loading tyres only 1-2 during maintenance

·        Safety emergency stop switches, all moving parts enclosed

·        Auto reverse function for blocking release

·        Dimensions 1.5 m long , 1.5m wide , 2.5m high,

·        Machine weight 5,500 kg.

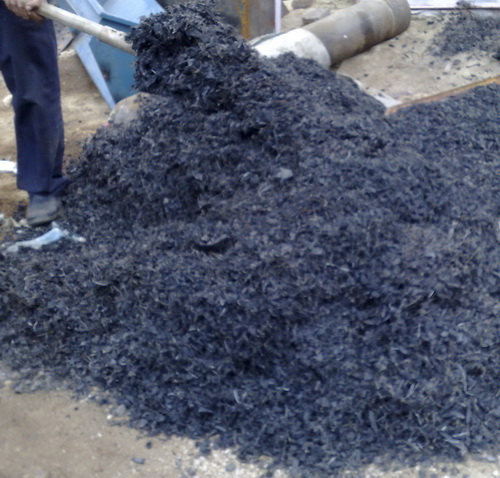

Output sample







5 - Magnetic separator

Model no.  MS095

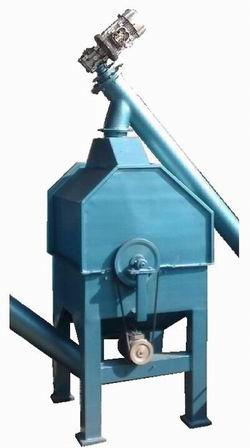

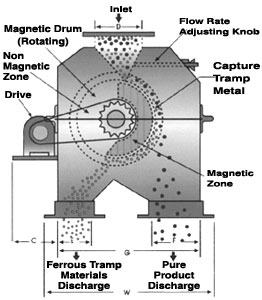

Magnetic Separator can separate the raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force. Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency.

 General Features :

  • Permanent magnet is used.

  • Stainless steel magnetic drum

  • Driven by 1 hp 380 V motor

  • Production capacity is 1500 kg/hr

  • Two ways output for steel and rubber

  • Compact and simple configuration

  • Structure and handling are simple

  • Installation in any existing lines is possible





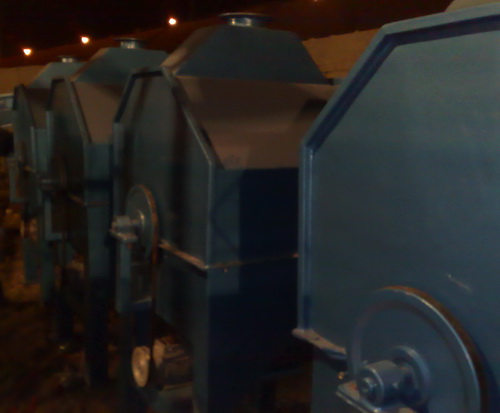

6 - Rubber Grinder

Model no.  RG092

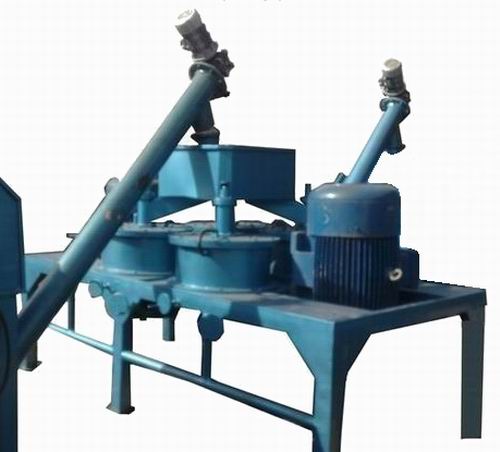

The rubber grinder produces a range of different sized rubber granules and powder from 16 mm shred .

The rubber grinder, fitted with four granulating and four grinding chambers, It is specifically designed to both granulate steel-free rubber chips of up to 16 mm in size, and grind steel-free rubber chips without the overheating and low capacity problems .

The rubber grinder consists of two electric motors; Each motor drives two water cooled processing chambers, all mounted on a common table the discharged product is suitable for screening and immediate sale or further processing.

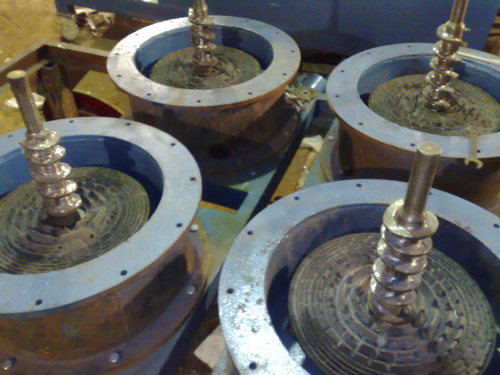

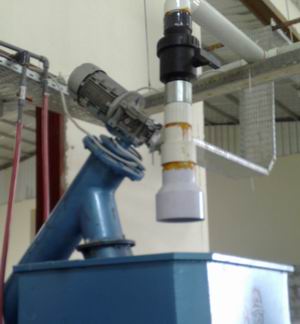

Grinding disks

Unique features :

The grinder is compact, economical and simple to operate. It is designed to work most efficiency by feeding with overhead hopper, This hopper being fitted with individual, variable speed, feed augers for each processing chamber.

The cutting mechanism consists of a series of replaceable, resharpenable fixed and rotating cutters of various profiles. The rotating cutters are mounted on a water-cooled, splined shaft and the fixed cutters retained within the water-cooled housing.

Dust suction system

The product is discharged from the processing chambers into a common water-cooled trough auger, and from this auger, can be screened and bagged or deposited onto the separator for fiber separation and screening. The oversize product would generally be returned to the feed hopper for further processing.



Basic Specification:

·         Powered by two 50 Kw main motor , 380

·         Input capacity up to 1500 Kg /hr of steel-free rubber chips,

·         16 mm max input size ,

·         Output rubber granules ranging in size from 0.6mm  up to 12 mm

·         Feed by one overhead feed hopper

·         Discharge Trough conveyor

·         Various blades quantities and combinations of fixed and rotating blades .

·         Blade life approx. 500 hours.

·         Shaft Bearings on two grease lubricated tapered roller bearings in a water-cooled housing and one cylindrical roller bearing

·         Operators 1-2 for loading tires only 1-2 during maintenance

·         Safety Emergency stop switches,

·         All moving parts enclosed

·         Dimensions 3 m long , 2 m wide , 2 m high excluding feed hopper ,

·         Weight 4,500 kg





7 - Auger Conveyor

Model no.  AC048

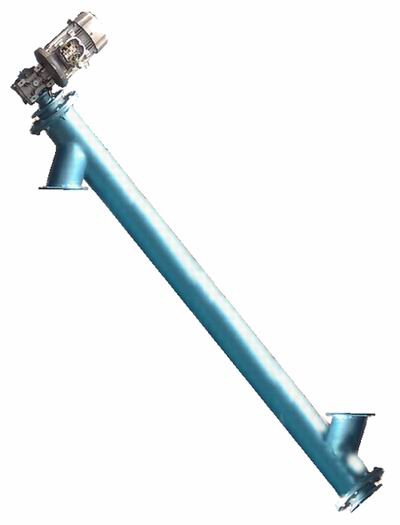

Where heavy or rough product conditions are present an auger conveyor can be a good solution for continuous product transfer at any angle up to 80º . It is also a good fit where product needs to be broken or reduced for transfer.

Technical Specification:

·  Auger conveyor is made of painted high quality steel pipe

·  Pipe diameter is 10" , thickness 5 mm

·  Auger conveyor is driven by 4 hp motor 380 volt .

·  It can be tilted up to 80º to ground.

·  The length of auger conveyor is up to 3.5 meter .

·  Auger conveying capacity up to 3.6 ton/hr.





8 - Fiber Separator

Model no.  FS093

The fiber separator is designed to meet the needs of recycling operations and municipalities for fiber-free crumb rubber. This machine is designed to work in conjunction with secondary fiber separators as fitted to our screen.

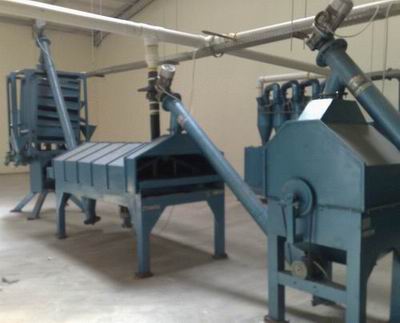

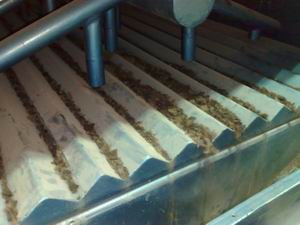

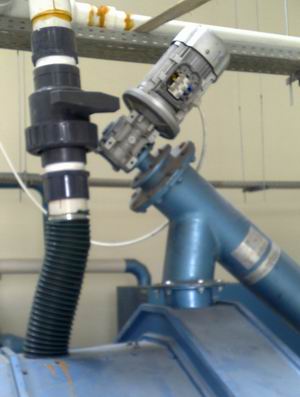

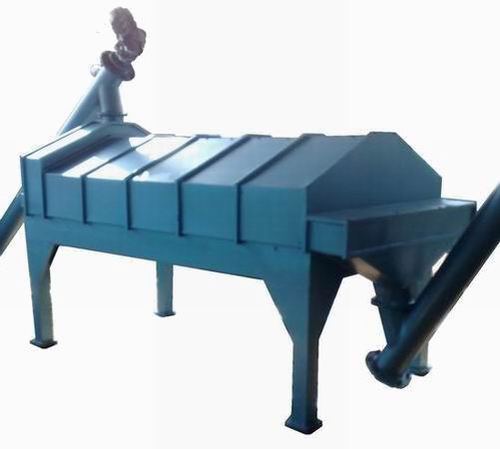

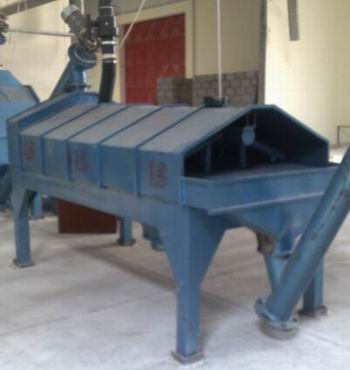

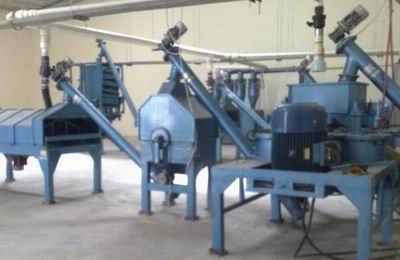

Fiber separator in production line

Unique features :

The separator is compact, economic and simple to operate. It is designed to process rubber powder at a rate up to 1500 kg per hour and after initial set-up, not require any operator intervention.

The rubber is moved across a series of trays on the table by means of a pair of vibratory motors attached to the underside of the table. Due to the tray profiles and vibratory action, the fiber is brought to the top of the rubber stream, where it is removed by a number of suction points suspended above the table.

The removed fiber is blown into a cyclone where it is wet down by water sprays around the cyclone inlet.

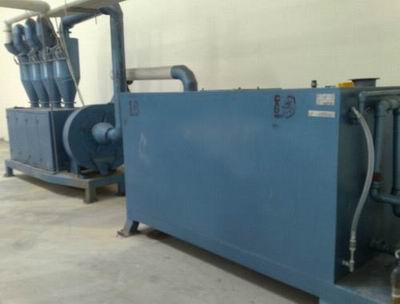

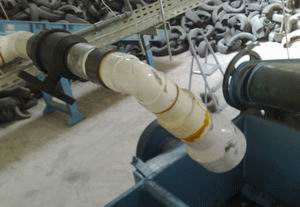

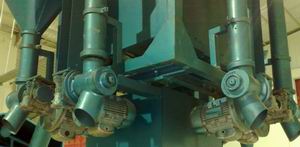

Fiber suction system

The wet fiber and excess water is discharged from the base of the cyclone into a screen where the fiber is separated from the water and is discharged into an auger, the auger depositing the fiber into bulk bags for sale or disposal,

Suction system

The cleaned water is returned to a water storage tank for re-use. The air discharged from the cyclone is filtered through a bag filter, to remove any remaining fiber, prior to release in the atmosphere.

The same water storage tank can be used as a source of cooling water for our shredders and grinders, the cyclone serving the dual purpose of separating the fiber from the air stream and cooling the hot water returned from the shredder and grinders.

The clean rubber is discharged from the fiber separator into an auger for screening and bagging.

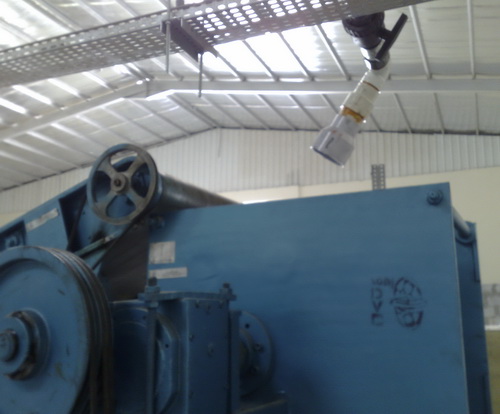

Drive system

Technical Specification :

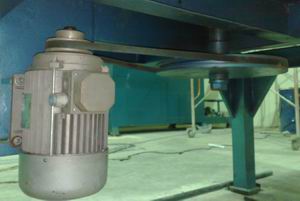

·        Vibrating motor 3 Kw 380 v in addition to augers motors

·        Production capacity up to 1500 kg/hr

·        All moving parts are guarded for safety beside emergency push button

·        Overall dimension 2m length, 1.5m width and 1.5m high

·        Total weight is 800 kg.





9 - Screening & Filling Machine

Model no.  SF094

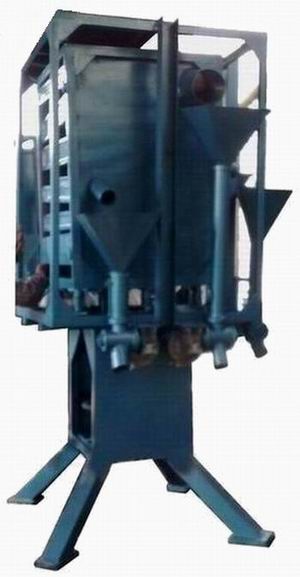

Screening and filling machine is designed to oid all of other brands screen deficiencies. Shaped sieve frame design for convenience and quick change of sieve (only 5 to 10 minutes required) ; this design furthermore allow single-layer sieves, double-layer sieves or triple-layer sieves to be mounted as required.

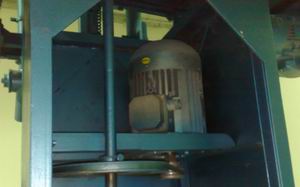

Drive motor

Completely separate unit design; the resulting simple and easy assembly and dismantling can be carried out by a single person which means an even smoother production process.
Larger sieving area and higher performance form a machine of the same dimensions.
The design of primary and secondary sieves ensures that fine sieves are fully supported by primary sieves; as a result, fine sieves have an exceptionally long service life which, apart from keeping down costs, means a reduction in the number and length of stoppages to the production process.

Weight calibration system

ADVANTAGES :

  • Saves time, 5-10 minute screen changes with "two" persons.
  • Steady, uninterrupted production.
  • Screens generally last longer with the combination of clean ring and ball tray assembly.
  • Tapping balls do not contact the fine mesh screens.
  • The easiest way to change a screen cloth

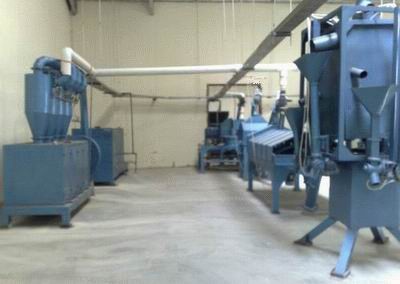

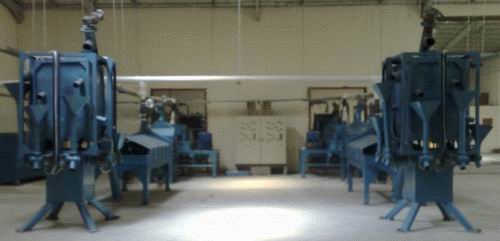

Line Photos
