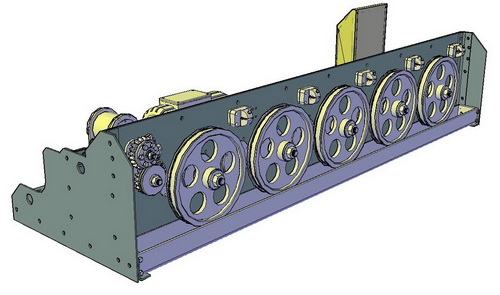

Wire Drawing Machine

Model WD147







Technical Specifications:

No. of Drafts

5

Drawing Capstan Dia

600 mm

Inlet Aluminium wire

8 mm

Inlet Copper wire

8 mm

Finished Wire

4.00 to 5.00 mm

Drawing Final Speed

100 m/min

HP Required

65 hp

Reduction Area

20 to 30%

Type of Machine

Slip Type

No. of Dies

5 Dies

Average partial compressibility

28 %

Capstan speed

60~120 r.p.m

Wire drawing line speed

1.8 m/s

Dimensions

3900 x 1200 x 800 mm

Weight

3200  kg









Manufacture yourself



Exact Qualiy

Lower Price



Now

You can buy

drawings only and manufacture yourself



You can buy machine drawings only from CADshop and manufacture at any workshop you know with required quality and lower price
