ماكينة سحب
السلك
Wire
Drawing Machine
موديل
WD147 |

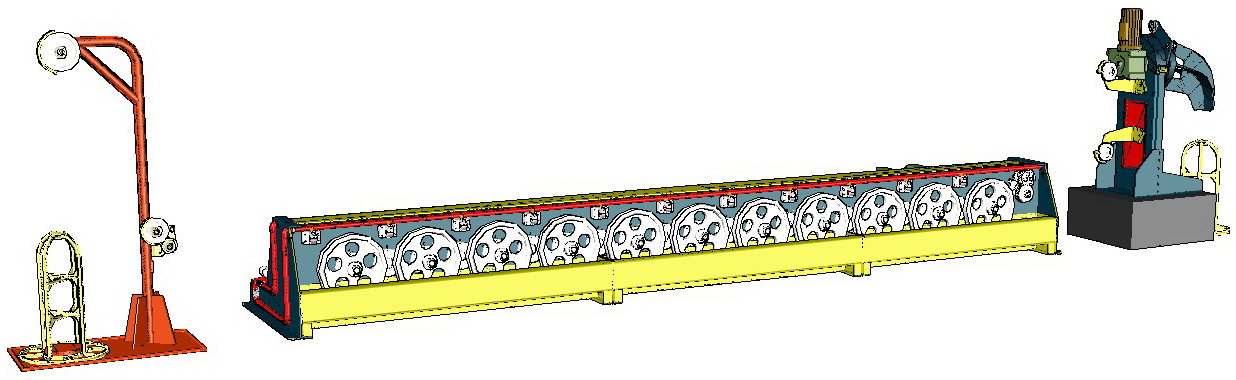

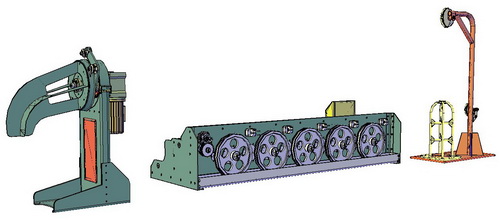

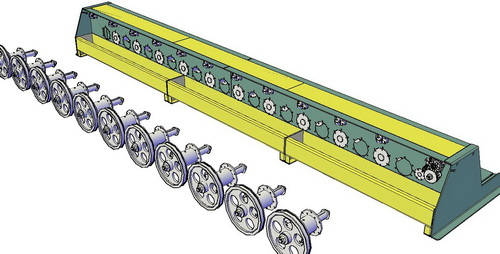

Wire drawing machine is stepped cone type suitable for drawing
non-ferrous metals like Aluminium and Copper using a numbers of dies

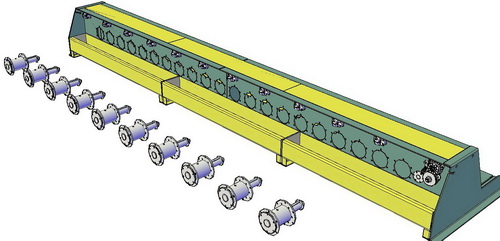

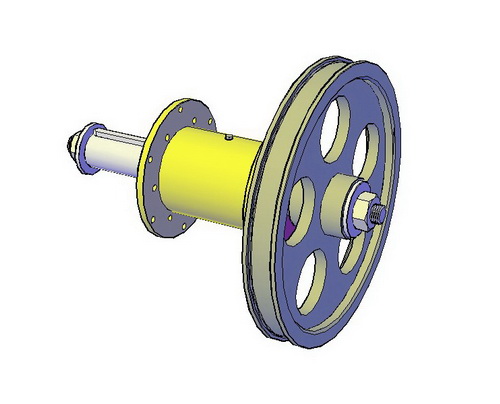

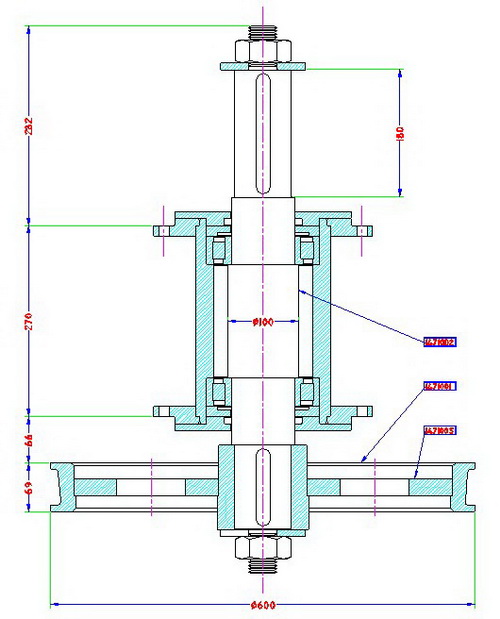

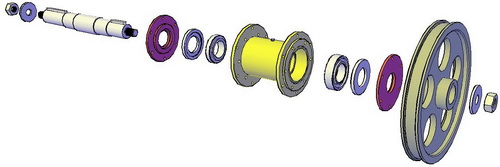

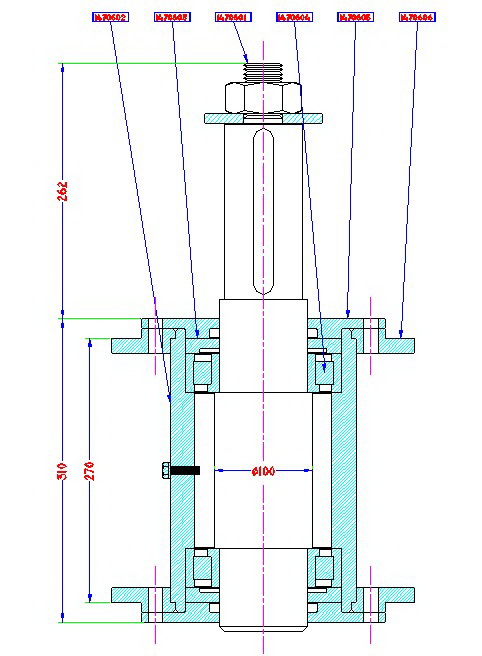

in tandem. The machine has horizontally mounted stepped capstans

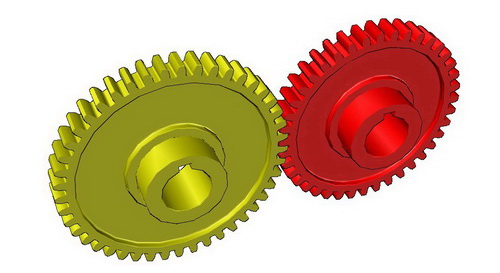

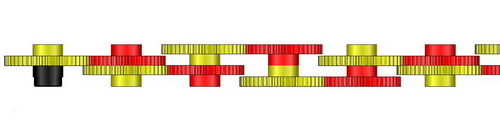

which are hardened and ground finished. The drive to individual

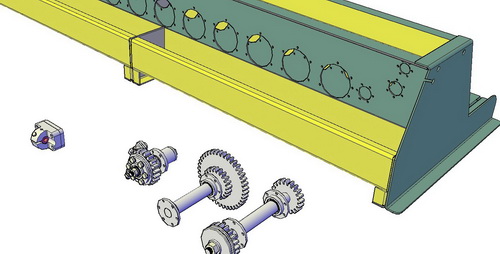

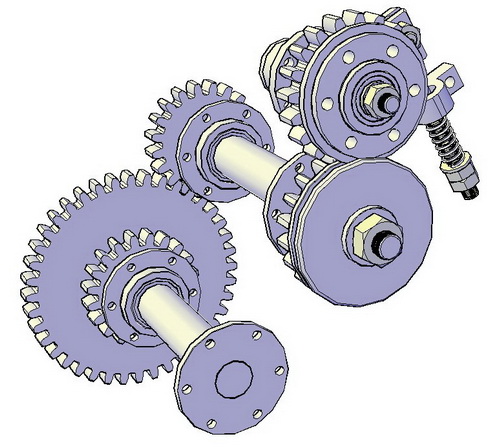

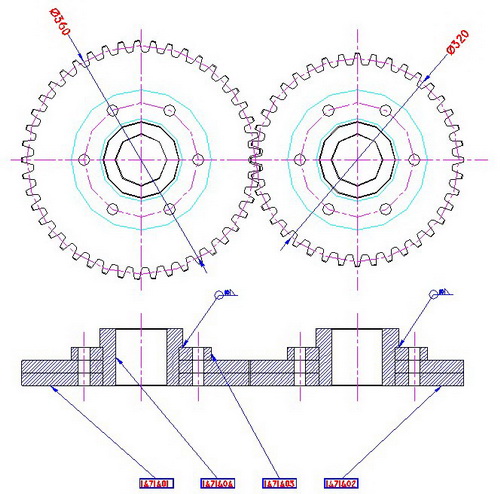

capstan shaft is provided through spur gears. The gear train is

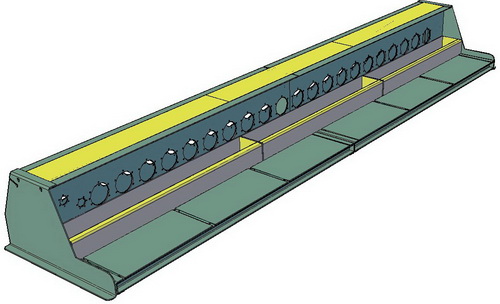

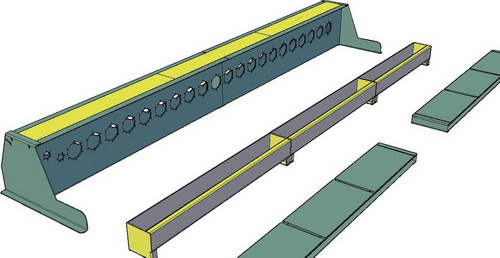

housed in steel fabricated solid body and is oil immersed for smooth

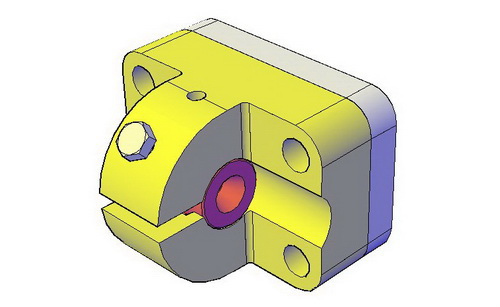

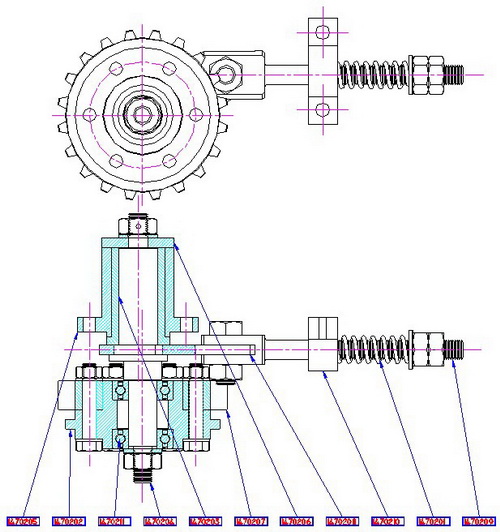

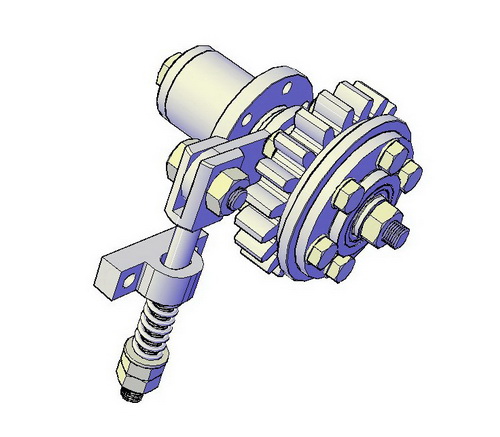

running. The die holders are provided between

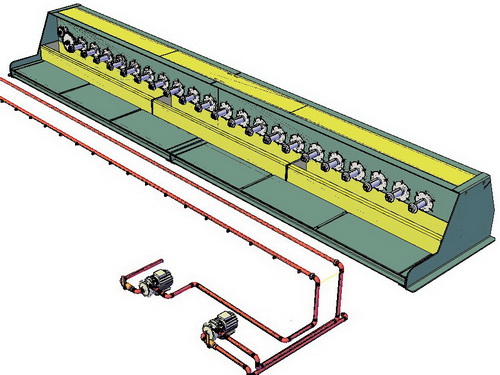

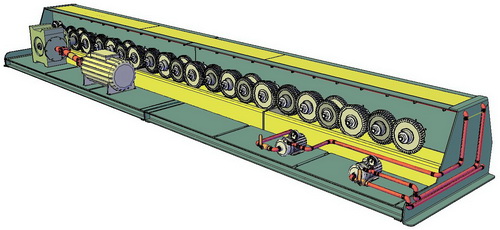

each capstan unit. Pipeline is provided over dies for
lubrication and cleaning .
Machine advantages includes: reasonable
structure, compact appearance, smoother operating, higher
efficiency and is easy to operate and maintain.
Technical Specifications:
|
No. of Drafts |
11 |
|
Drawing Capstan Dia |
600 mm |
|
Inlet Aluminium wire |
Up to 8 mm |
|
Inlet Copper wire |
Up to 8 mm |
|
Finished Wire |
2.00 mm |
|
Drawing Final Speed |
120 m/min |
|
HP Required |
75 hp |
|
Reduction Area |
20 to 30% |
|
Type of Machine |
Slip Type |
|
No. of Dies |
11 Dies |
|
Average partial compressibility |
29 % |
|
Capstan speed |
70~120 r.p.m |
|
Wire drawing line speed |
1.8 m/s |
|

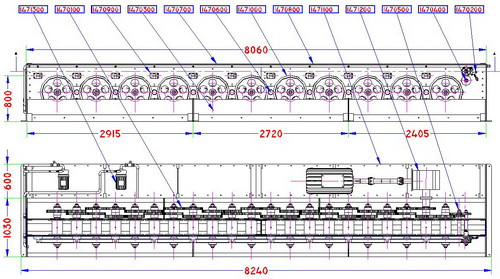

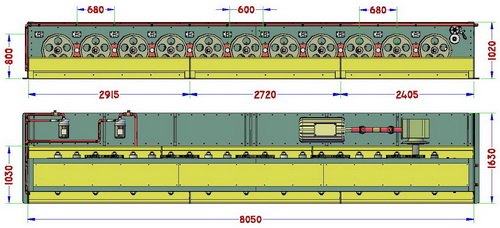

Dimensions |
8200 x 1200 x 800 mm |
|
Weight |
5500 kg |
|
