حامل بكرة السلك

Wire Stand

موديل  CS071

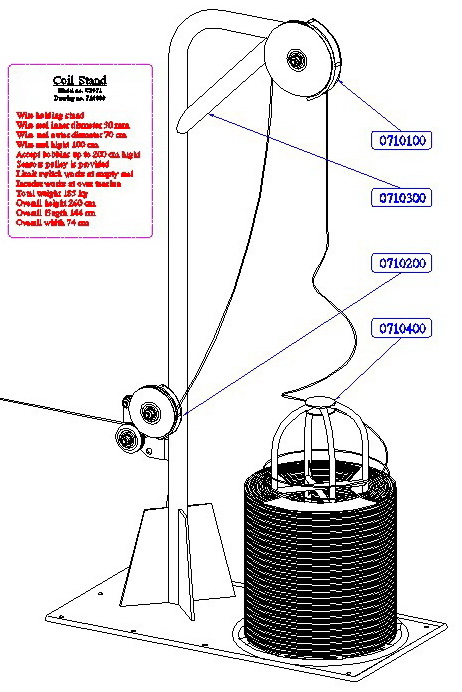

Coil Stand
Model no. CS071
Drawing no. 710000


Wire holding stand
Wire reel inner diameter 30 mm
Wire reel outer diameter 70 cm
Wire reel hight 100 cm
Accept bobbins up to 200 cm hight
Sensors pulley is provided

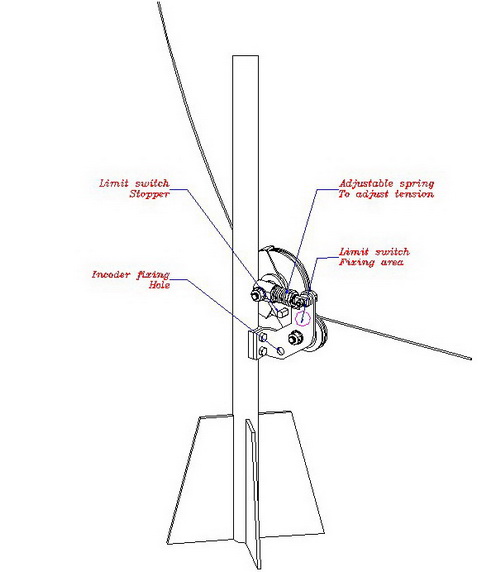

Limit switch works at empty reel
Incoder works at over tension
Total weight 185 kg
Overall height 260 cm
Overall l3ngth 144 cm
Overall width 74 cm







Stand Design

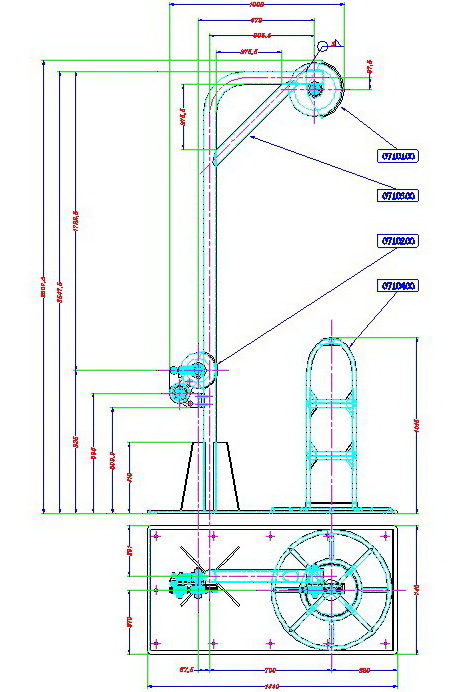

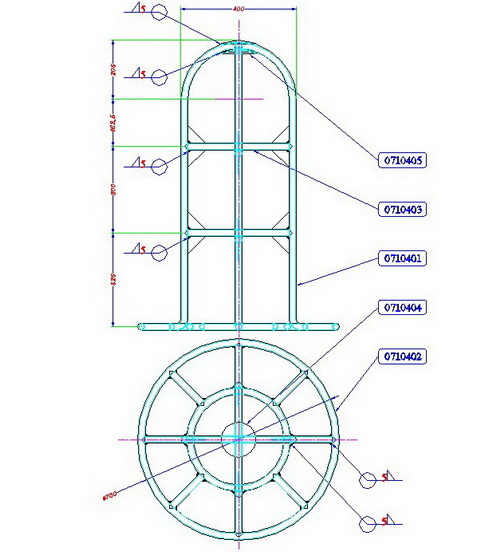

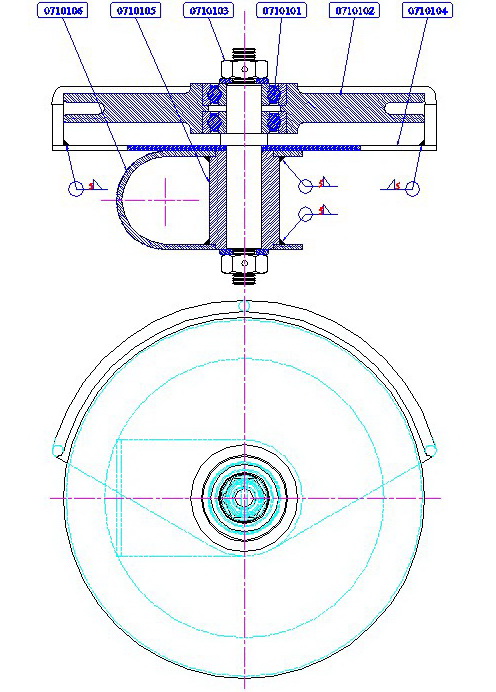

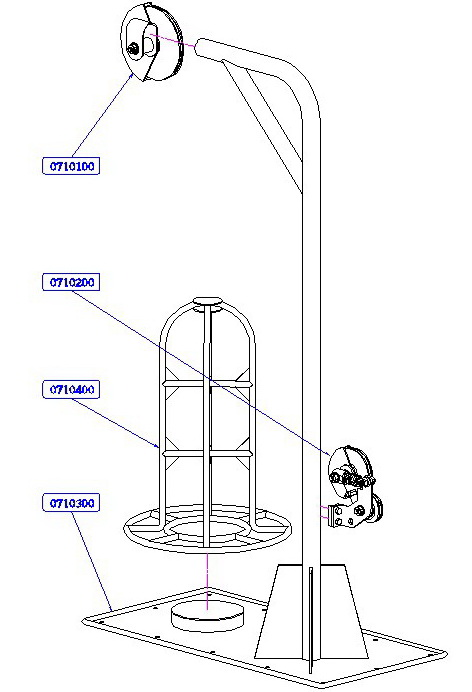

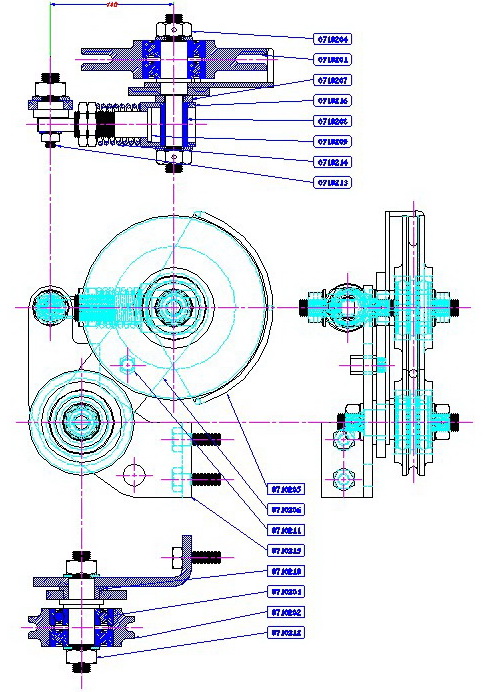

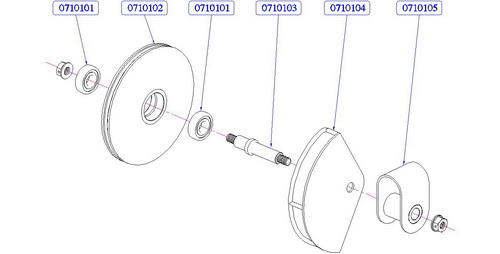

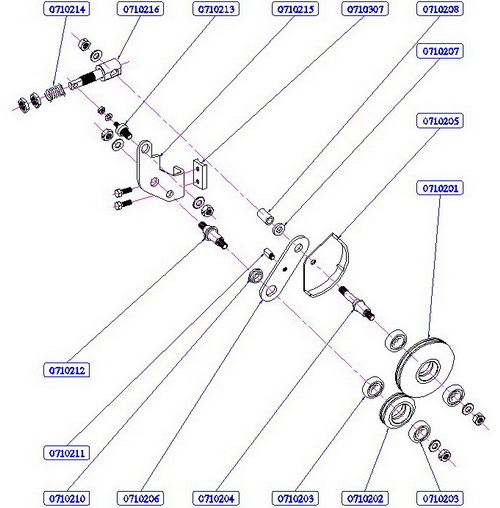

Technical Drawings





























Photos
