Irrigation Pivot

5 span 80 acre

Model P264

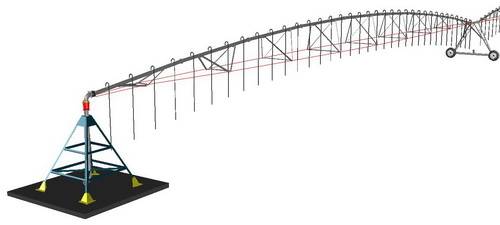

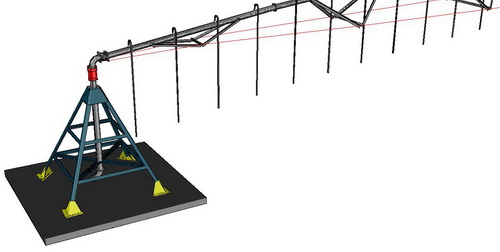

Irrigation Pivot 1



Technical Specifications:

  • Span length 56 m

  • number of spans 6

  • total length 335 m

  • speed 1revolution each 48 hr

  • main tube 4 inch

  • electric sensors for towers sync

  • total weight without pump 18 ton

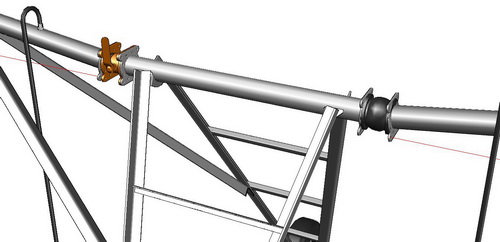

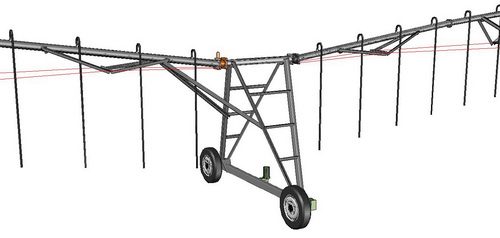

Irrigation Pivot 2

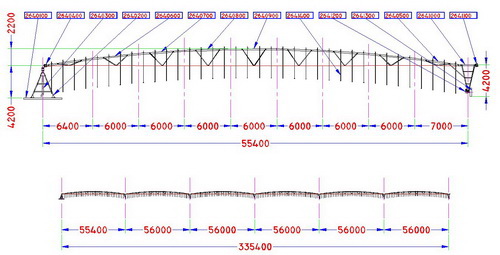

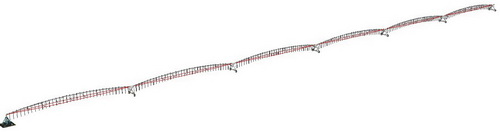

Pivot Design

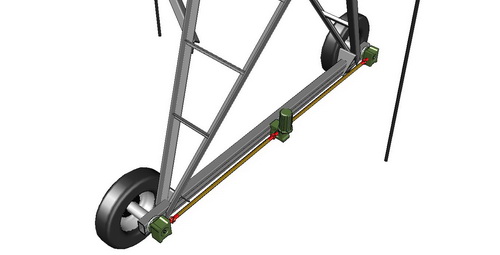

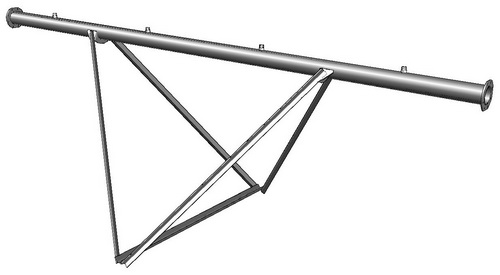

Irrigation Pivot 3



Irrigation Pivot 4

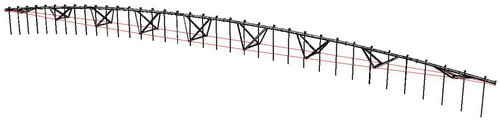

Irrigation Pivot 5

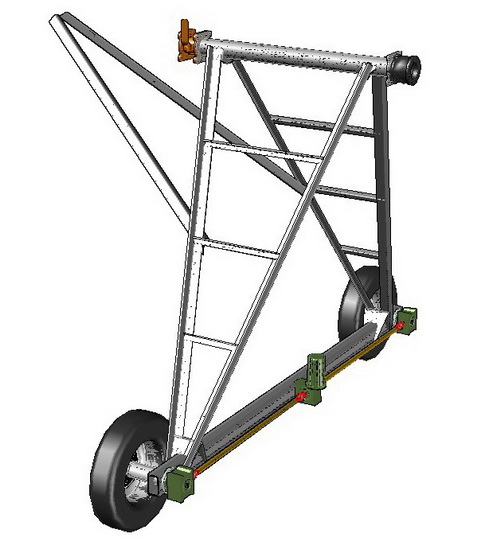

Irrigation Pivot 6

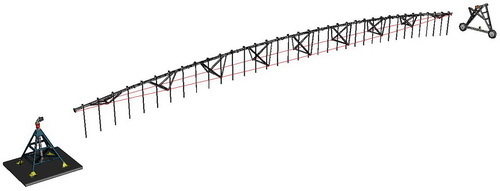

Irrigation Pivot 7

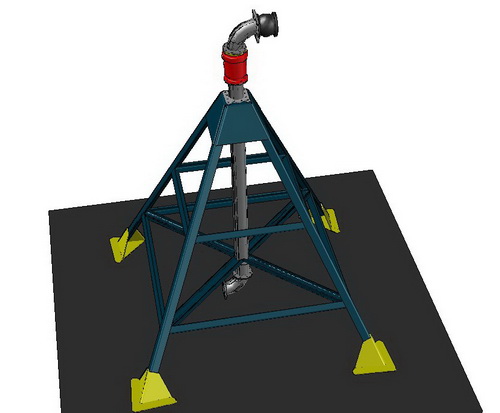

Irrigation Pivot 8

Irrigation Pivot 9







Irrigation Pivot 10



Irrigation Pivot 11

Irrigation Pivot 12



Irrigation Pivot 13















more..


PDF free download sample : 2640000.pdf | 2640207.pdf | 2641202.pdf
DWG free download sample : 2640201.dwg | 2640300.dwg | 2641105.dwg | swivel.dwg
DXF free download sample : st05 q48 2640601.dxf | st05 q6 2640902.dxf | st10 q4 2640204.dxf

Save weeks of work and instant download full design package with DFM features including: 2D, 3D, DXF, PDF and JPG files | Laser cutting | Minimum weldings | Bolted assembling | tested and guaranteed.

Buy Full Design package for Pivot 675 $
