Spring machine

Model SM096

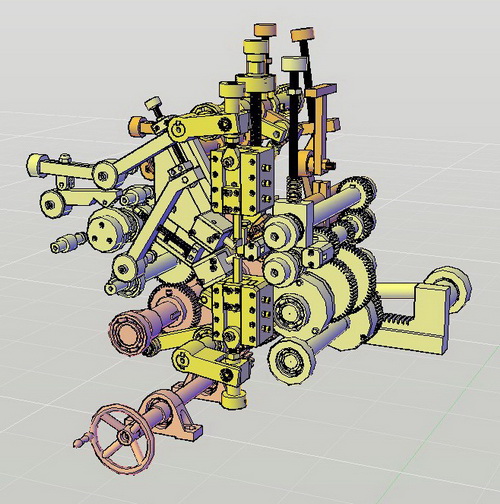

Spring machine 1



General specifications:

  1. Cylindrical compression springs making machine

  2. Diameter of steel wire : 3 - 8mm

  3. Diameter of spring: 8 -130mm

  4. Productivity: 6 - 20 pieces per minute

  5. Winding left and right

  6. Spring free length up to 150mm

  7. Electric machine power: 3kw

  8. Dimensions (mm) : 1200x900x1500

  9. Machine weight 900 kg

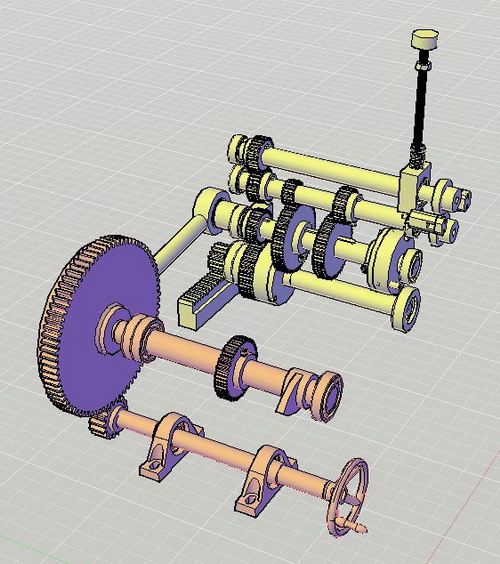

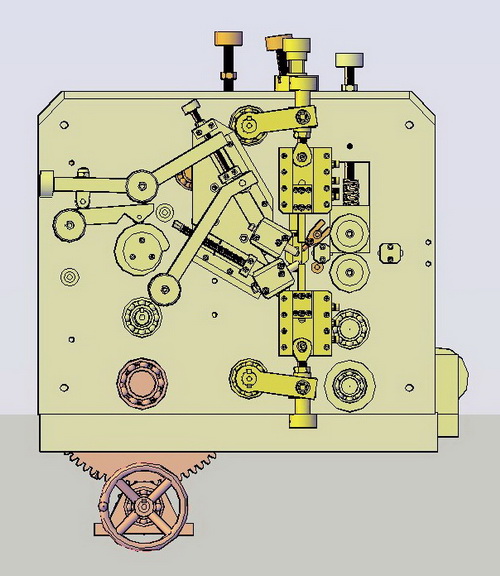

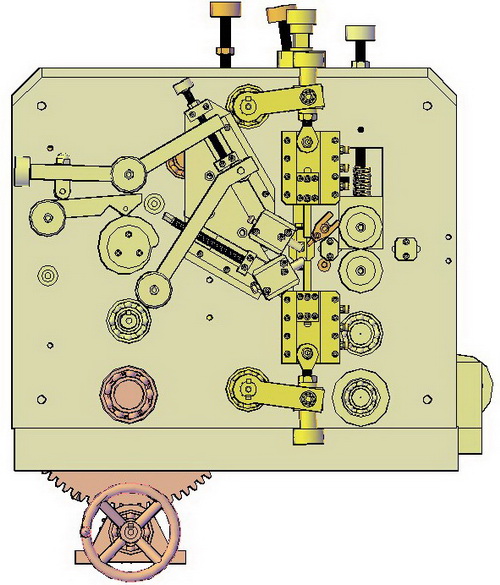

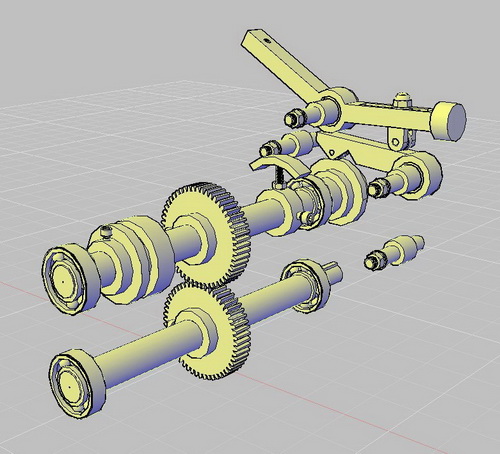

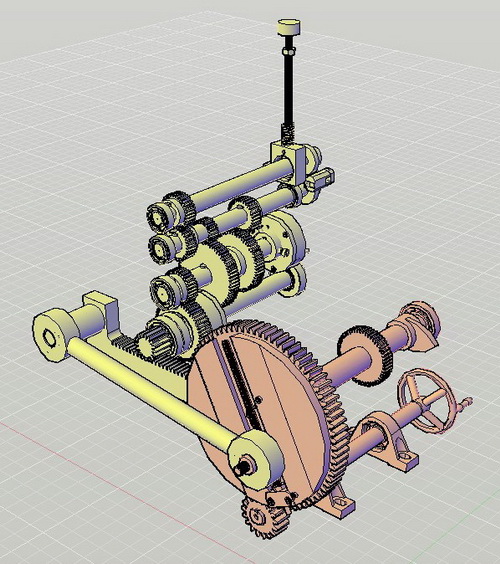

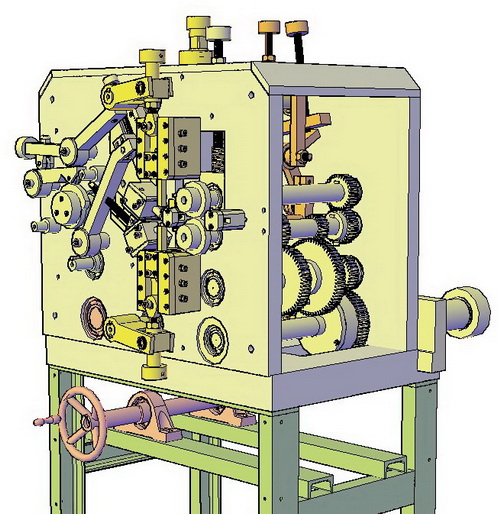

Machine Design

Spring machine 2



Spring machine 3



Spring machine 4

more..











DWG free download sample : 077003.dwg | 077006.dwg | 077010.dwg | 077013.dwg | Feeder.dwg

Save weeks of work and instant download full design package with DFM features including: 2D, 3D, DXF, PDF and JPG files | Laser cutting | Minimum weldings | Bolted assembling | tested and guaranteed.

Buy Full Design package for Spring machine 277 $
