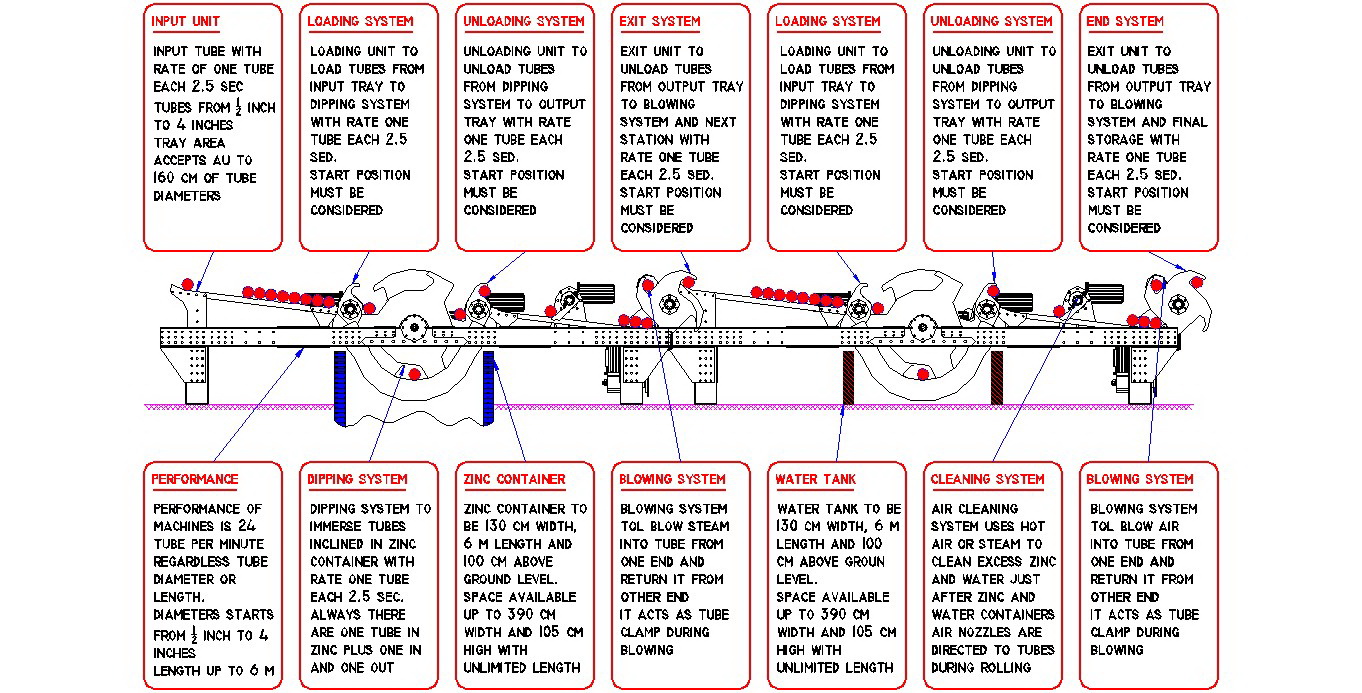

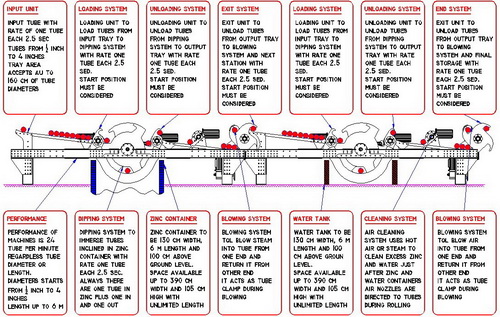

Technical Specifications:

input nit
input tube with rate of one tube each 2.5 sec
tubes from 1/2 inch to 4 inches
tray area accepts au to 160 cm of tube diameters

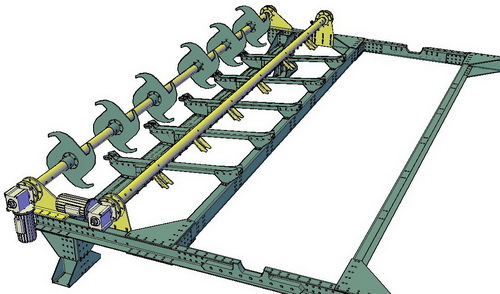

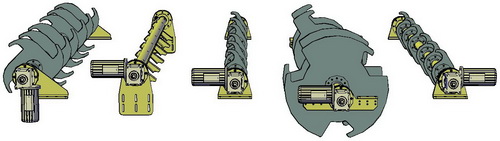

loading system
loading unit to load tubes from input tray to dipping system with rate one tube each 2.5 sed.
start position must be considered

unloading system
unloading unit to unload tubes from dipping system to output tray with rate one tube each 2.5 sed.
start position must be considered

exit system
exit unit to unload tubes from output tray to blowing system and next station with rate one tube each 2.5 sed.
start position must be considered

end system
exit unit to unload tubes from output tray to blowing system and final storage with rate one tube each 2.5 sed.
start position must be considered

performance
performance of machines is 24 tube per minute regardless tube diameter or length.
diameters starts from 1/2 inch to 4 inches
length up to 6 m

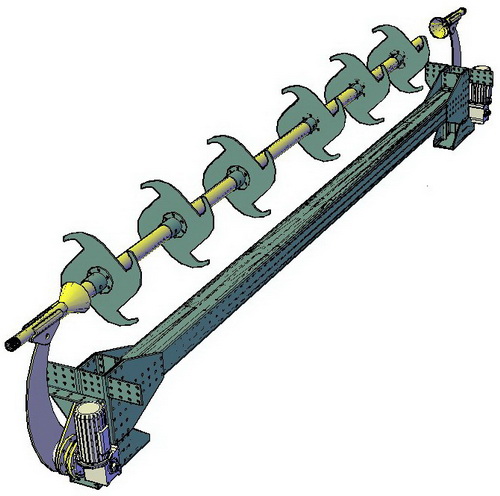

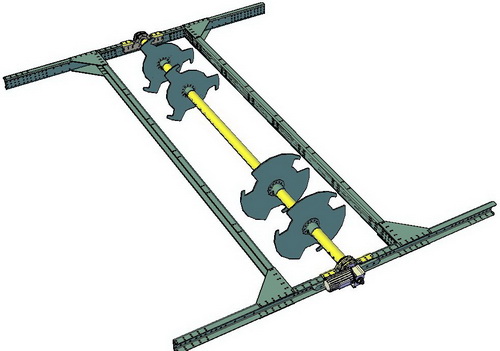

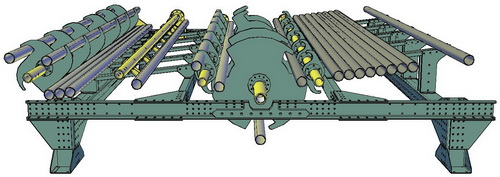

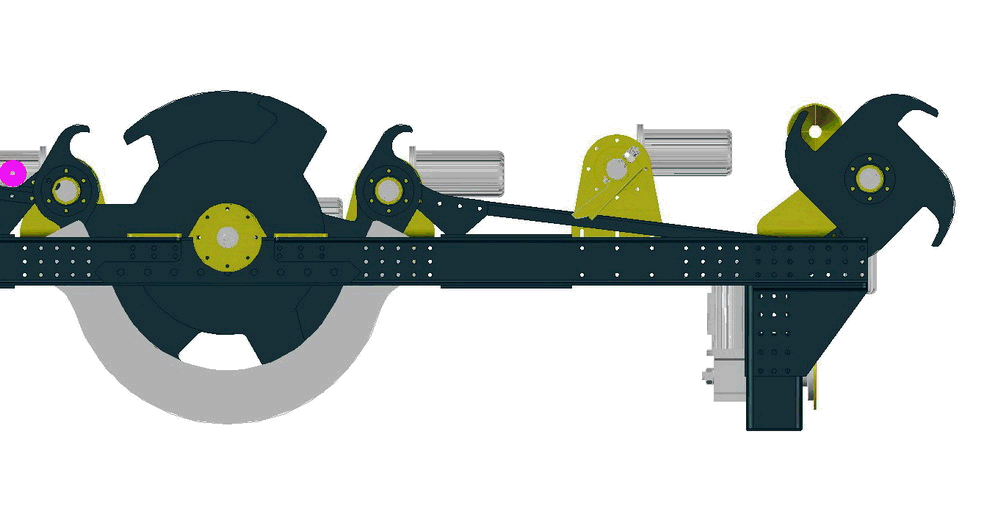

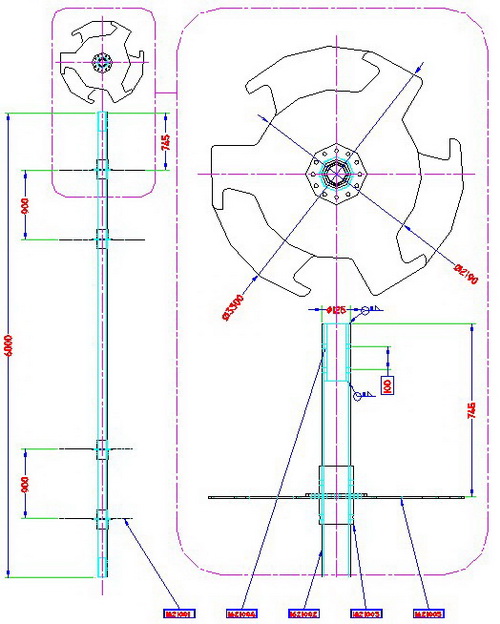

dipping system

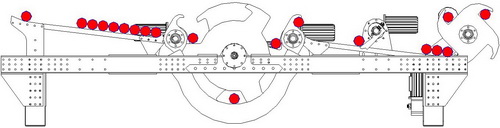

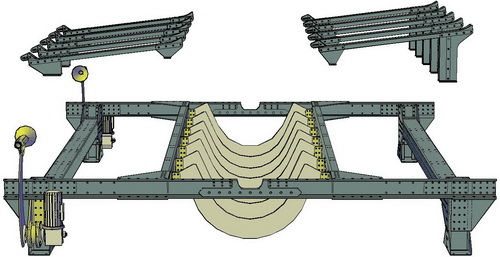

dipping system to immerse tubes inclined in zinc container with rate one tube each 2.5 sec.
always there are one tube in zinc plus one in and one out

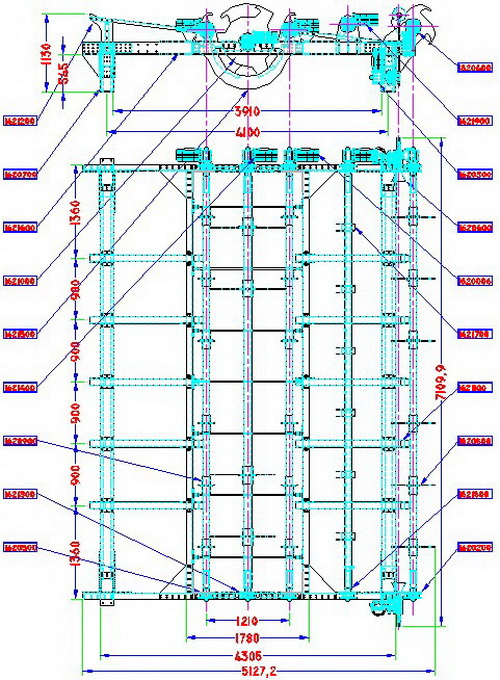

zinc container
zinc container to be 130 cm width, 6 m length and 100 cm above ground level.
space available up to 390 cm width and 105 cm high with unlimited length

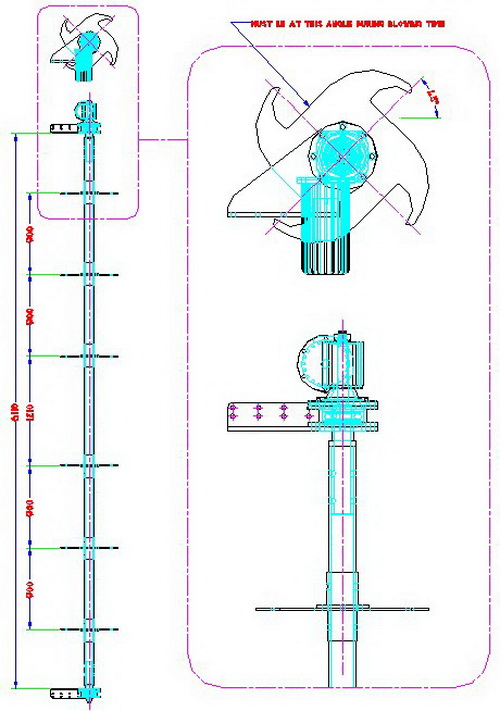

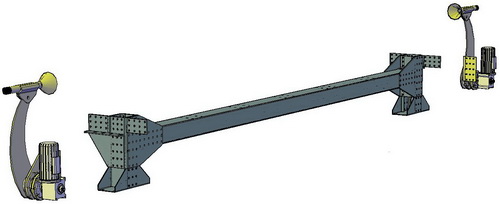

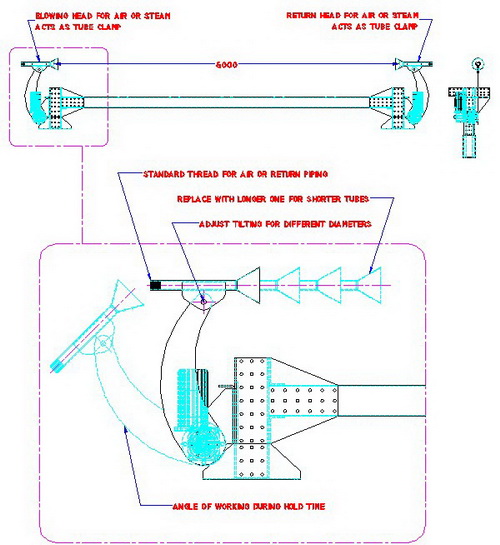

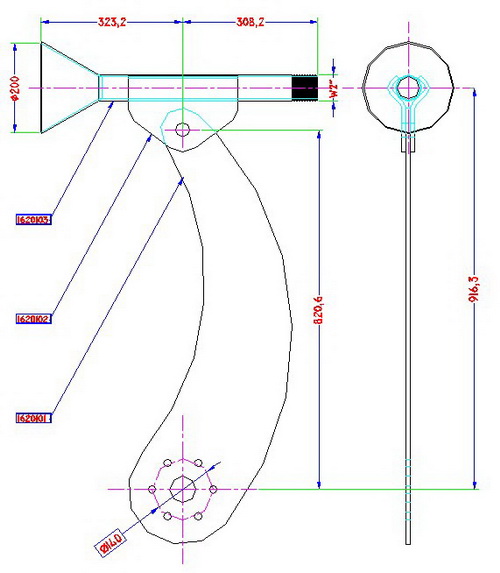

blowing system
blowing system to blow steam into tube from one end and return it from other end
it acts as tube clamp during blowing

water tank
water tank to be 130 cm width, 6 m length and 100 cm above ground level.
space available up to 390 cm width and 105 cm high with unlimited length

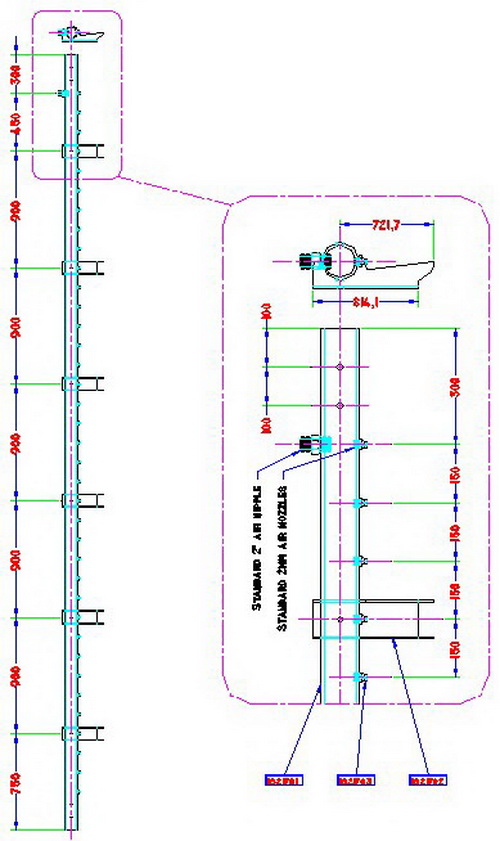

cleaning system
air cleaning system uses hot air or steam to clean excess zinc and water just after zinc and water containers
air nozzles are directed to tubes during rolling
