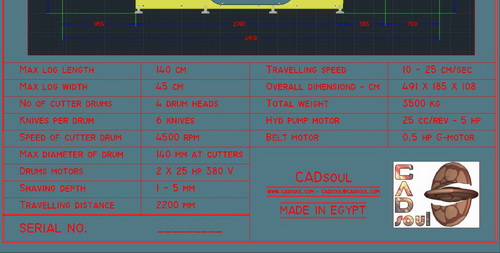

Wood Shaving Machine

Model WS115

Traveling distance

Shaving depth

Drums motors

Max diameter of drum

Speed of cutter drum

Knives per drum

No of cutter drums

Max log width

Max log length

Belt motor

Hydraulic pump motor

Total weight

Overall dimensions - cm

Traveling speed

2200 mm

1 ~ 5 mm

2 X 25 hp 380 V

140 mm at cutters

4500 rpm

6 knives

4 drum heads

45 cm

140 cm

0.5 hp

G-motor 25 cc/rev - 5 hp

3500 kg

491 X 185 X 108

10 ~ 25 cm/sec

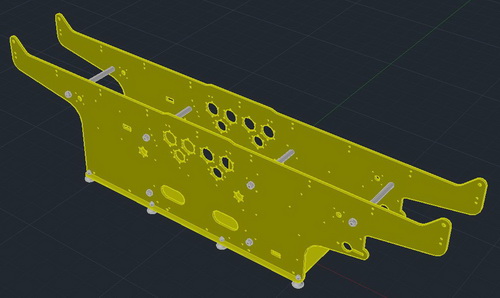

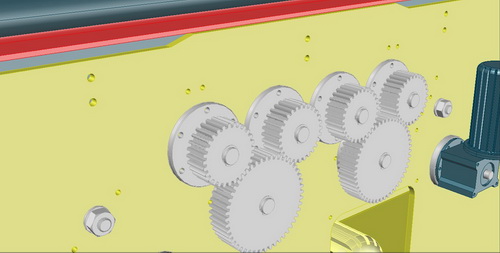

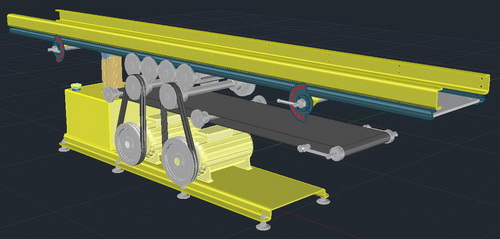

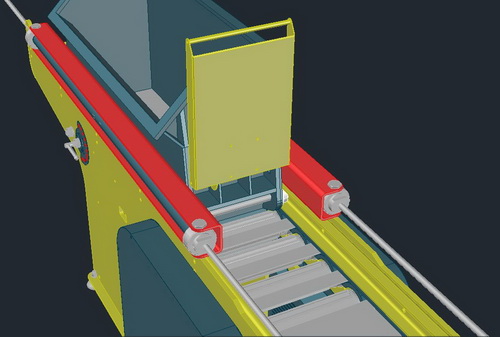

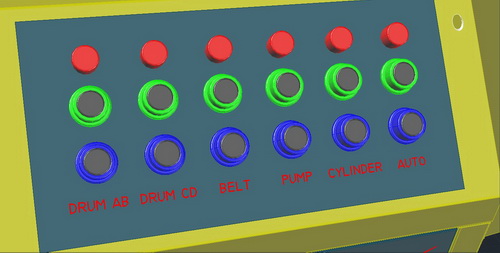

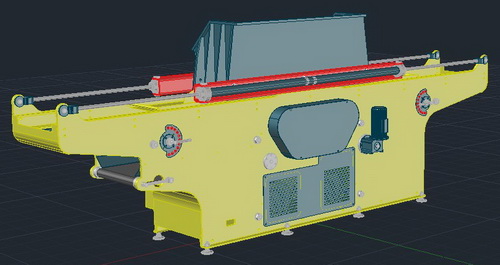

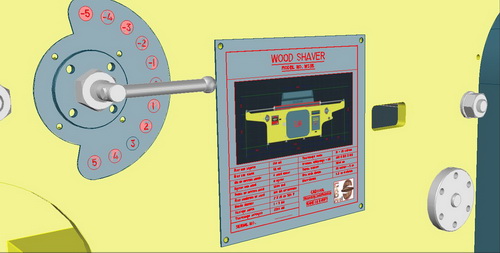

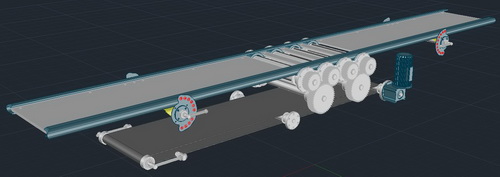

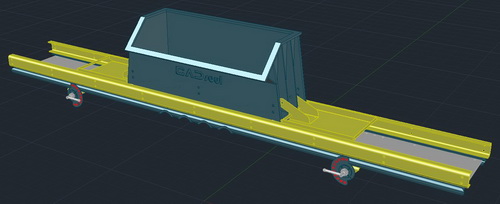

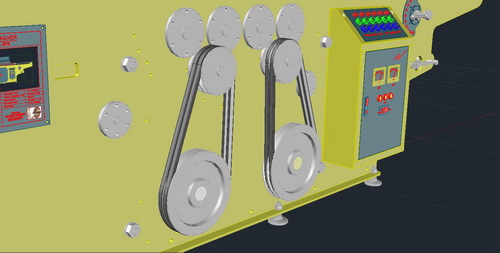

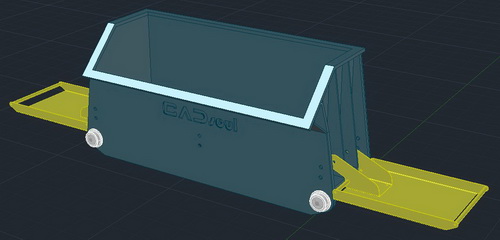

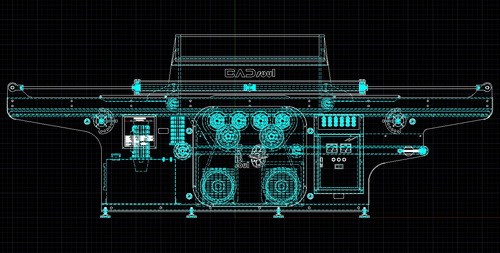

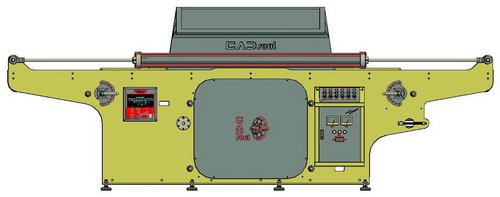

Machine Design
